赋能10G演进，打造面向未来的网络

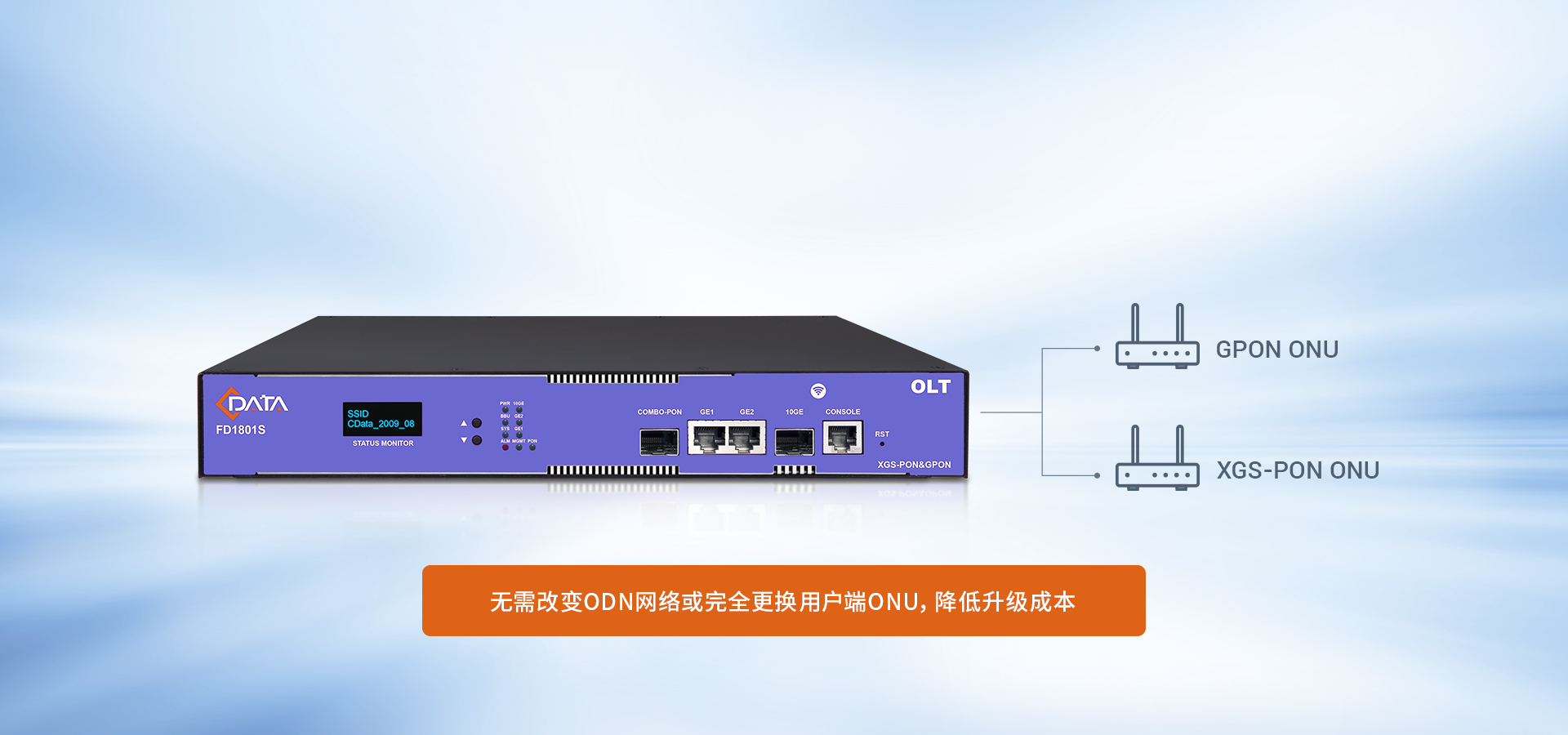

通过集成GPON和XGS-PON技术，Combo PON OLT FD1801S不仅兼容现有的GPON网络，还能按需提供高带宽业务，助力网络平滑升级，为运营商打造经济高效的网络升级方案。
西迪特Combo PON OLT提供单个Combo PON端口，可以在提供GPON速率的同时无缝升级到XGS-PON，提供10Gbps的高速服务，满足用户对于更高带宽和更低延迟的业务的追求。

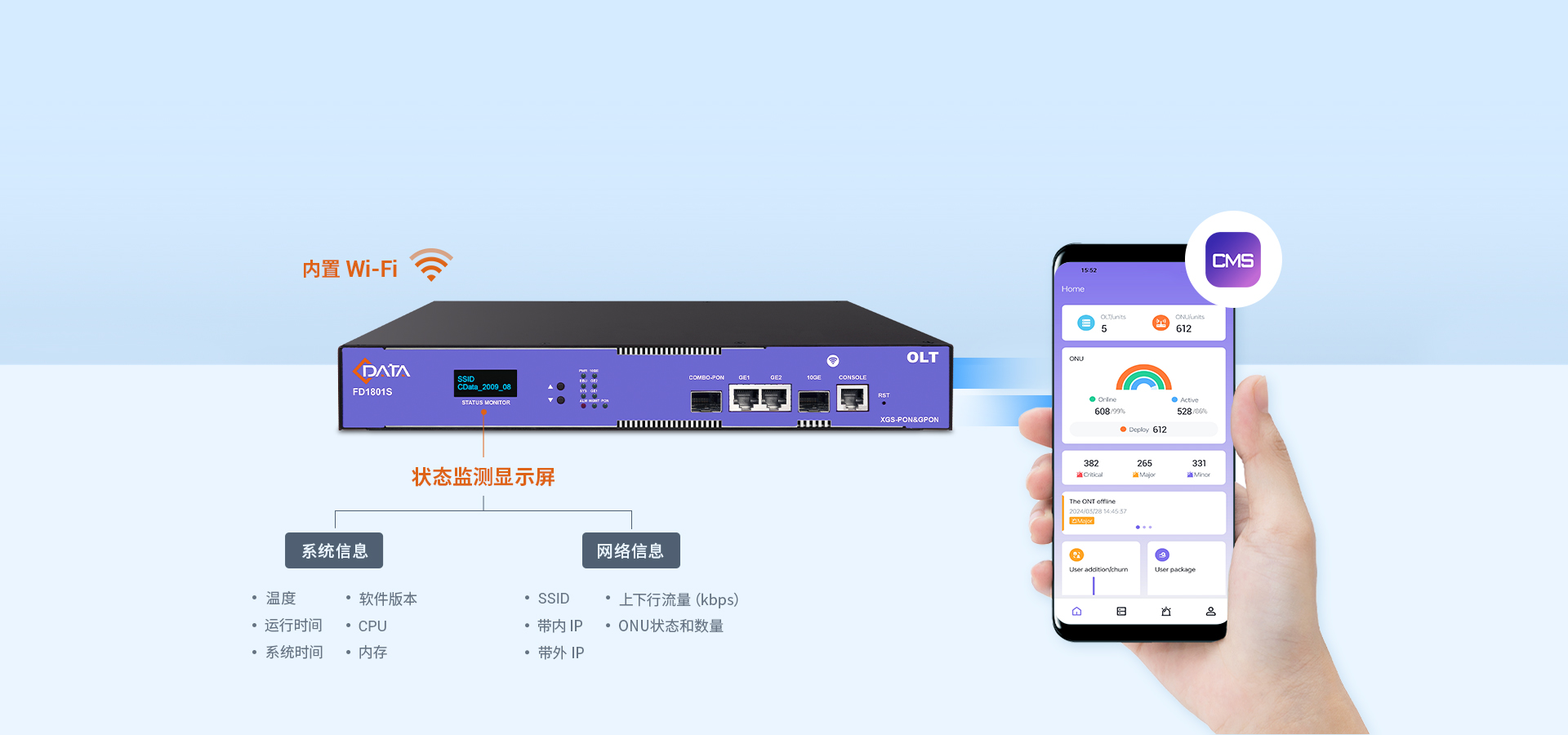

内置Wi-Fi和用于监控设备状态的LED屏，可通过手机随时随地对设备进行管理配置，提高运维效率。
尺寸仅为312*197*44mm，重量仅1.95kg，支持挂墙安装和桌面放置，减少了空间占用。紧凑设计可轻松放置于办公桌或安装在网络机柜，满足多种场景安装需求。
Combo PON OLT支持接入现有的GPON ONU和按需升级的XGS-PON ONU，提供多元化的业务支持，满足用户持续增长的带宽需求。兼具技术先进性和经济效益，在各种应用场景中均具有显著优势，是目前GPON网络向10G PON网络演进的首选部署方案。

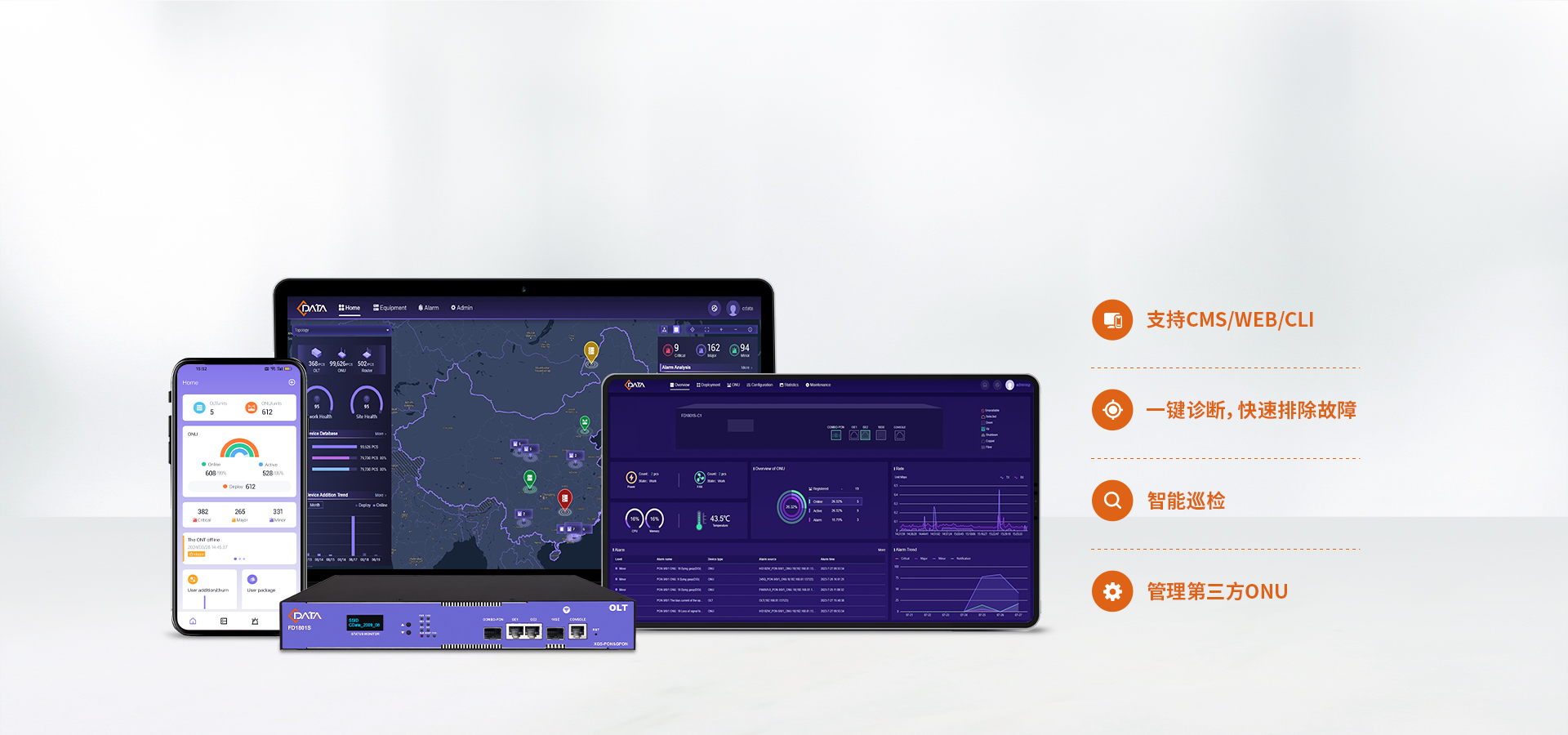

西迪特CMS和OLT Web为用户、运营商和企业提供了一个安全、智能、高效的网络运维平台，简化管理操作，提高管理效率。

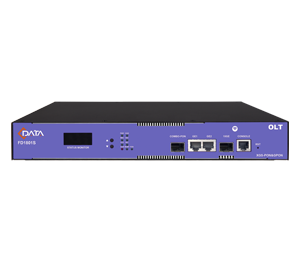

| Model | FD1801S-C1 |
| Mechanics | |
| Dimensions | 312.8mm(L)*197mm(W)*44mm(H) |
| Weight | 1.95Kg |
| ITEM |
| |
| Hardware | ||
| Uplink Port | GE port | 2* 10/100/1000M auto-negotiation Ethernet ports |
| 10-Gigabit port | 1* SFP+ interfaces | |
| PON Port | Quantity | 1 |
| Physical Interface | SFP slot | |
| Max Splitting Ratio | 0.130555556 | |
| Management Port | 1* CONSOLE local management port | |
| PON Port Attribute | Transmission Distance | 20KM |
| Port Rate | XGS-PON: Downstream: 10Gbps Upstream: 10Gbps | |
| GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps | ||
| Wavelength | XGS-PON: Forwarding: 1577nm Receiving: 1270nm | |
| GPON: Forwarding: 1490nm Receiving: 1310nm | ||
| Interface Type | SC/UPC | |
| Fiber type | 9/125μm SMF (Single Mode Fiber) | |
| Light Transmission Power | XGS-PON&GPON COMBO | |
| 5~8dBm (9.953G) | ||
| 3~7dBm (2.488G) | ||
| Receiving Sensitivity | XGS-PON&GPON COMBO | |
| ≥-29dBm (9.953G) | ||
| ≥-30.5dBm (2.488G) | ||
| ≥-30dBm (1.244G) | ||
| Saturation Power | XGS-PON&GPON COMBO | |
| ≤-8dBm (9.953G) | ||
| ≤-10dBm (2.488G) | ||
| ≤-12dBm (1.244G) | ||
| Network Management Method | Support CLI, SNMP, TELNET, SSH, WEB | |
| Business Capabilities | Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. | |
| Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. | ||
| PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. | ||
| Layer 3 function: support static routing, dhcp-relay and vlanif configuration. | ||
| Backplane Bandwidth | 44G | |
| Power supply | ||
| AC | 100V ~ 240V, 47 ~ 63Hz | |
| DC | External adapter mode 12V/2.5A | |
| BBU (Backup Battery Unit) | DC: 11V～14V. | |
| Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply. | ||
| Maximum Power | <14W | |
| Environment | ||
| Working Temperature | -15 ~ 50℃ | |
| Storage Temperature | -40 ~ 85℃ | |
| Ambient Humidity | 5 ~ 90% (Non-condensing) | |
| Product Model | Specifications | Power Supply |
| FD1801S-C1 | 1*XGS-PON & GPON Combo Port + 1*10GE (SFP+) + 2*GE (RJ45) | 100V~240V AC External adapter mode 12V/2.5A Optional BBU power supply |
