可扩展EPON OLT

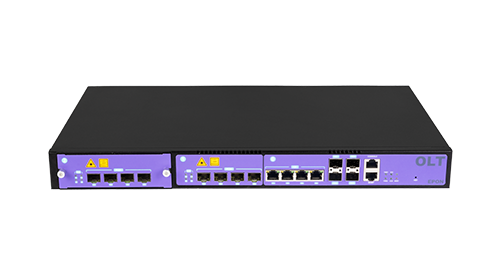

8PON Ports EPON OLT
8PON Ports EPON OLT
  • Dedicated Chip
    Dedicated Chip
  • 4*10G SFP+ Uplink Slots
    4*10G SFP+ Uplink Slots
  • 8*EPON Ports
    8*EPON Ports
  • Layer3 Switching
    Layer3 Switching
  • AC/DC Power Supply
    AC/DC Power Supply
  • Network Management
    Network Management
High-Performance
High-Performance
High Reliability
High Reliability
Rapid Deployment & Installation
Rapid Deployment & Installation
Adaptable to Diverse Scenarios
Adaptable to Diverse Scenarios
Typical Application
Typical Application

SPECIFICATIONS

ModelFD1304E
Dimensions440*44*293mm
Uplink Port4*10/100/1000M auto-negotiation Ethernet ports
PON PortQuantity: 4/8
Physical interface: SFP

Interface type: EPON: IEEE802.3ah

Max splitting ratio: EPON:  1:64

Management Port

1*100/1000BASE-Tx out-band Ethernet port

1*CONSOLE local management port

Backplane Bandwidth108G


查看更多
收回

RELATED PRODUCTS

ITEM

4 port epon olt

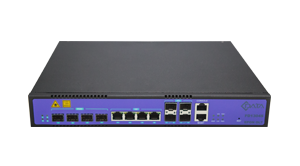

FD1304E


FD1304S

Specifications
4+4*EPON + 4*GE + 4*10GE SFP+4*EPON + 4*GE RJ45 + 4*10GE SFP+
RackType1U 19-inch standard box1U 19-inch standard box
Uplink PortCOMBO port4 10/100/1000M auto-negotiation Ethernet ports4 10/100/1000M auto-negotiation Ethernet ports
10-Gigabit4 SFP+ interfaces4 SFP+ interfaces
PON PortQuantity4/84
Physical interfaceSFPSFP slot
Interface typeEPON: IEEE802.3ahEPON: IEEE802.3ah
Max splitting ratioEPON: 1:64EPON: 1:64
Management Port1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port		1 100/1000BASE-Tx out-band Ethernet port
1 CONSOLE local management port
PON Port attributeTransmission distance20KM20KM
Port rateEPON: Symmetrical 1.25GbpsEPON: Symmetrical 1.25Gbps
Wavelength

Forwarding: 1490nm

Receiving: 1310nm

Forwarding: 1490nm

Receiving: 1310nm

Interface typeSC/UPCSC/UPC
Fiber type9/125μm SMF ((Single Mode Fiber)9/125μm SMF ((Single Mode Fiber)
Receiving sensitivityEPON: -27dBmEPON: -28dBm
Saturation powerEPON: -6dBmEPON: -8dBm
Network management methodSupport CLI、SNMP、TELNET、SSH、WEBSupport CLI、SNMP、TELNET、SSH、WEB
Backplane Bandwidth108G98G
Size440*293*44mm306*266*44mm
Weight4.0Kg2.6Kg
Power supply220VACAC: 100V～240V，47/63HzAC: 100V ~ 240V，47~63Hz
-48DCDC:-40V～-72VDC: -36 ~ -72VDC
BBU
(Backup Battery Unit)		DC: 11V～14V

Function: When the regular power supply is cut off, it can be switched to the backup power supply,

and when the regular power supply resumes, it will switch back to the regular power supply


Maximum power78W
Working environmentWorking temperature-15～50℃-15～50℃
Storage temperature-40～85℃-40～85℃
Humidity5～90% (Non-condensing)
5～90% (Non-condensing)




ORDERING INFORMATION

NO.Product ModelSpecificationsAccessories
1FD1304E4+4*EPON + 4*GE + 4*10GE SFP+Extra 4*EPON*portcardy
2FD1304S

4*EPON + 4*GE RJ45 + 4*10GE SFP+

Extended rack-ear
