xPON ONU

西迪特双频Wi-Fi6 ONU系列
西迪特双频Wi-Fi6 ONU系列

通往无限畅游的世界


  • Multiple Business Services
    Multiple Business Services
  • Compatibility with 3rd OLT
    Compatibility with 3rd OLT
  • Up to 3 Gbps
    Up to 3 Gbps

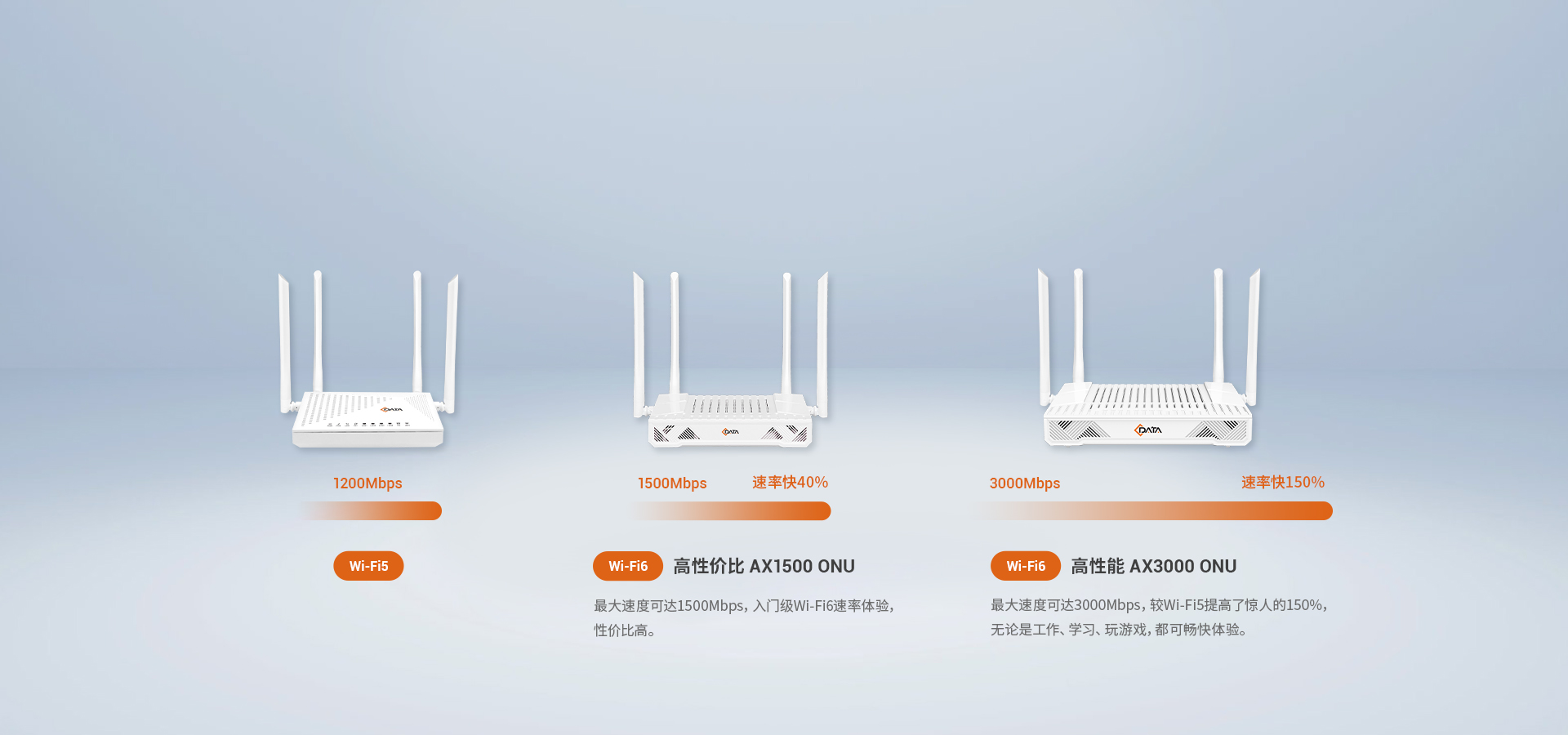

全新 Wi-Fi6 速度
全新 Wi-Fi6 速度


流畅连接尽在掌握，无论您是在进行 HD/4K/8K 直播互动、在线游戏、还是全球协同办公，高带宽，低时延，最大支持160MHz频宽。

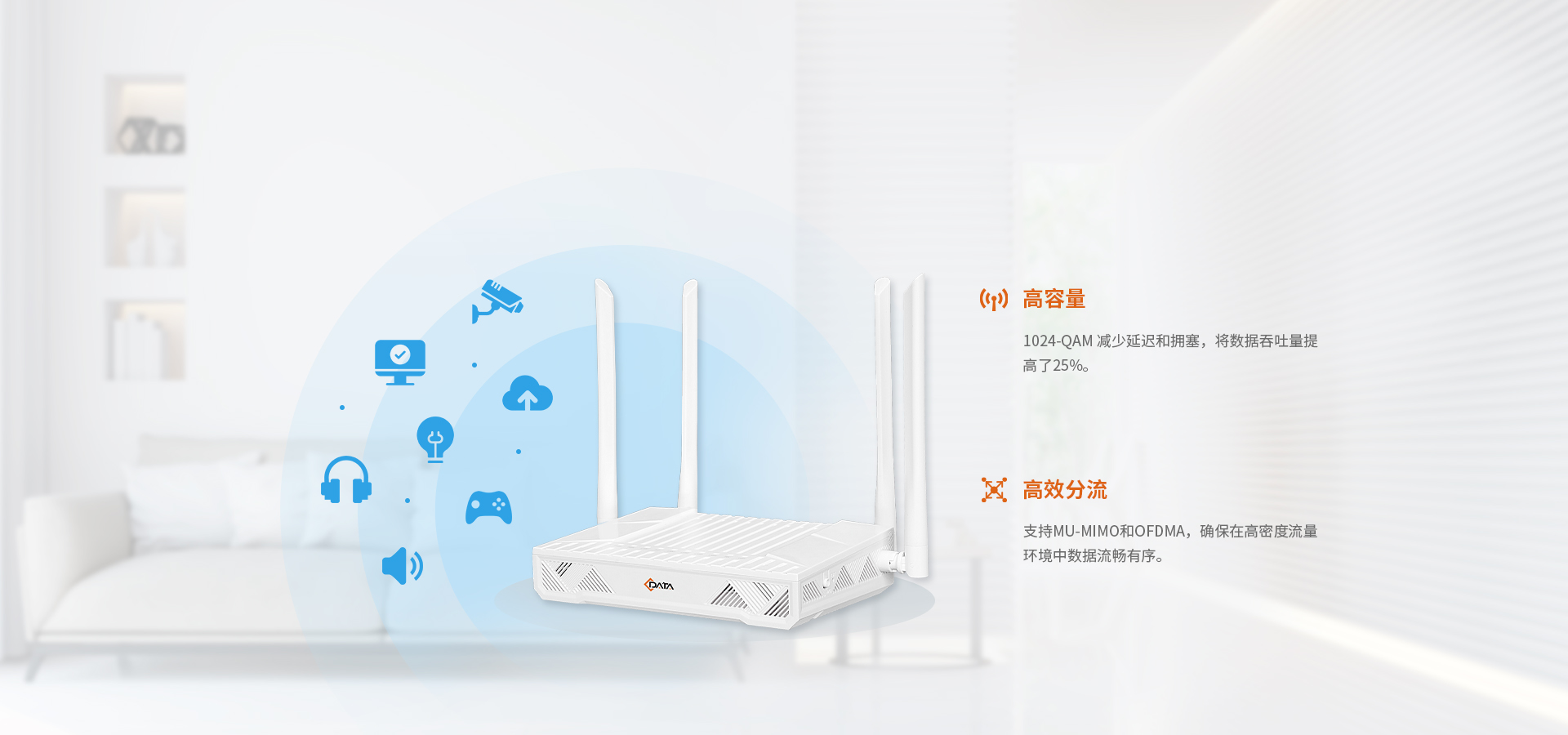

多智能终端接入
多智能终端接入

Wi-Fi6 ONU支持大量物联网终端同时连接，让您的智能设备稳定连接。

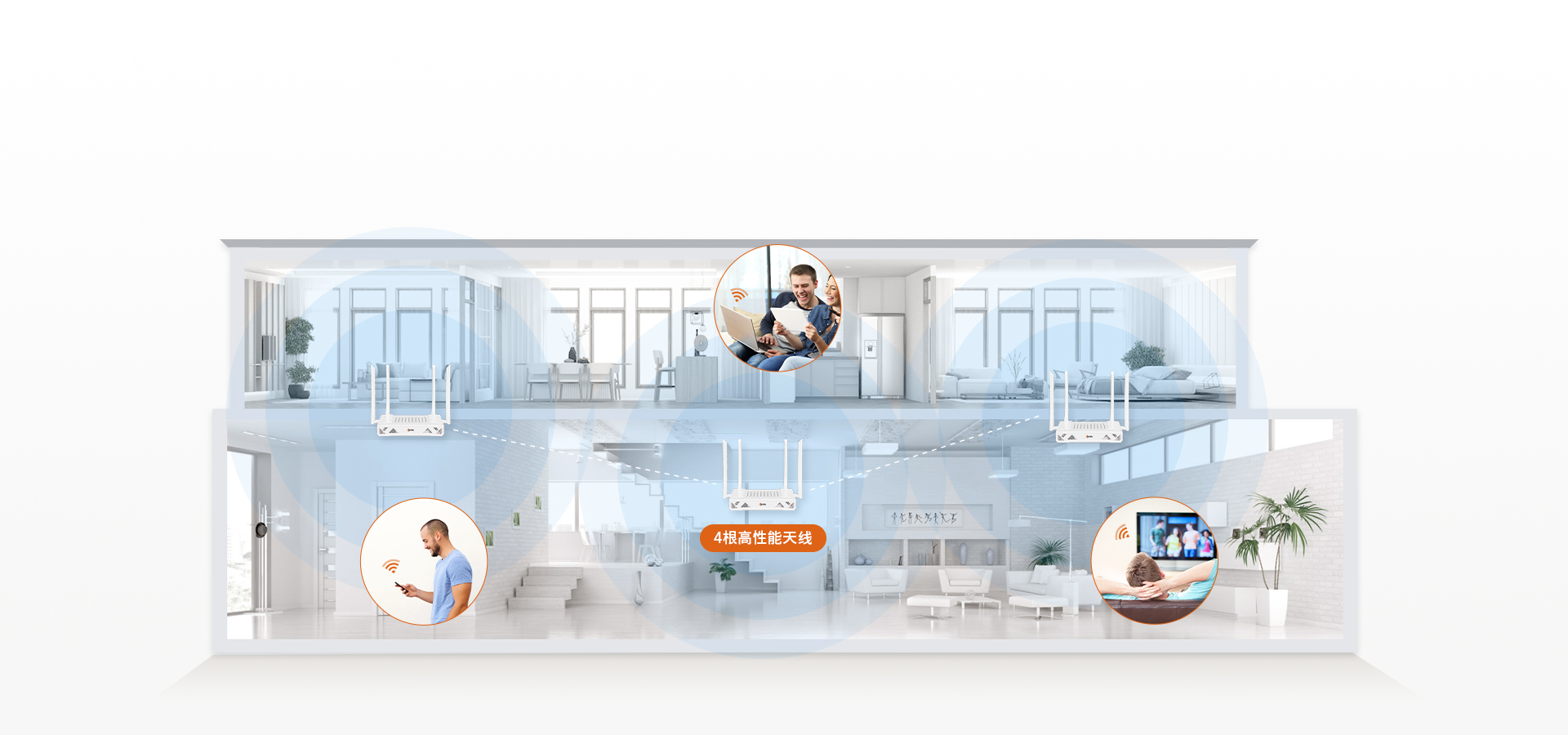

实现全屋覆盖
实现全屋覆盖


无缝延伸可靠网络，结合路由器套件和 Mesh 连接，轻松覆盖每个角落，与家人和朋友分享畅快体验。

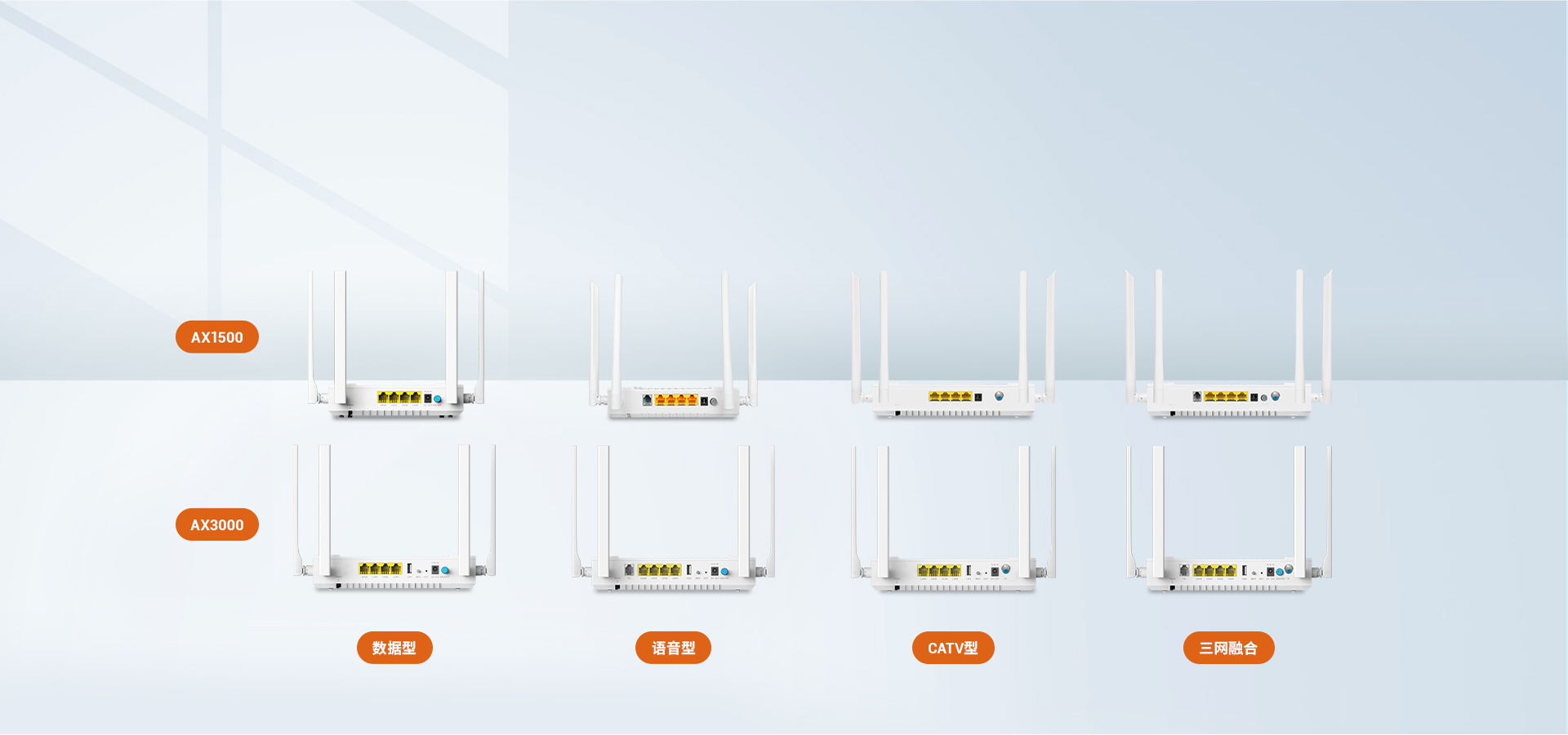

多业务端口可供选择
多业务端口可供选择


Wi-Fi6 ONU 配备有 xPON 端口，支持 EPON 和 GPON 两种模式的自适应接入。有多个不同型号，分别支持数据、语音、CATV 和三网合一的接口，满足广泛的连接需求。

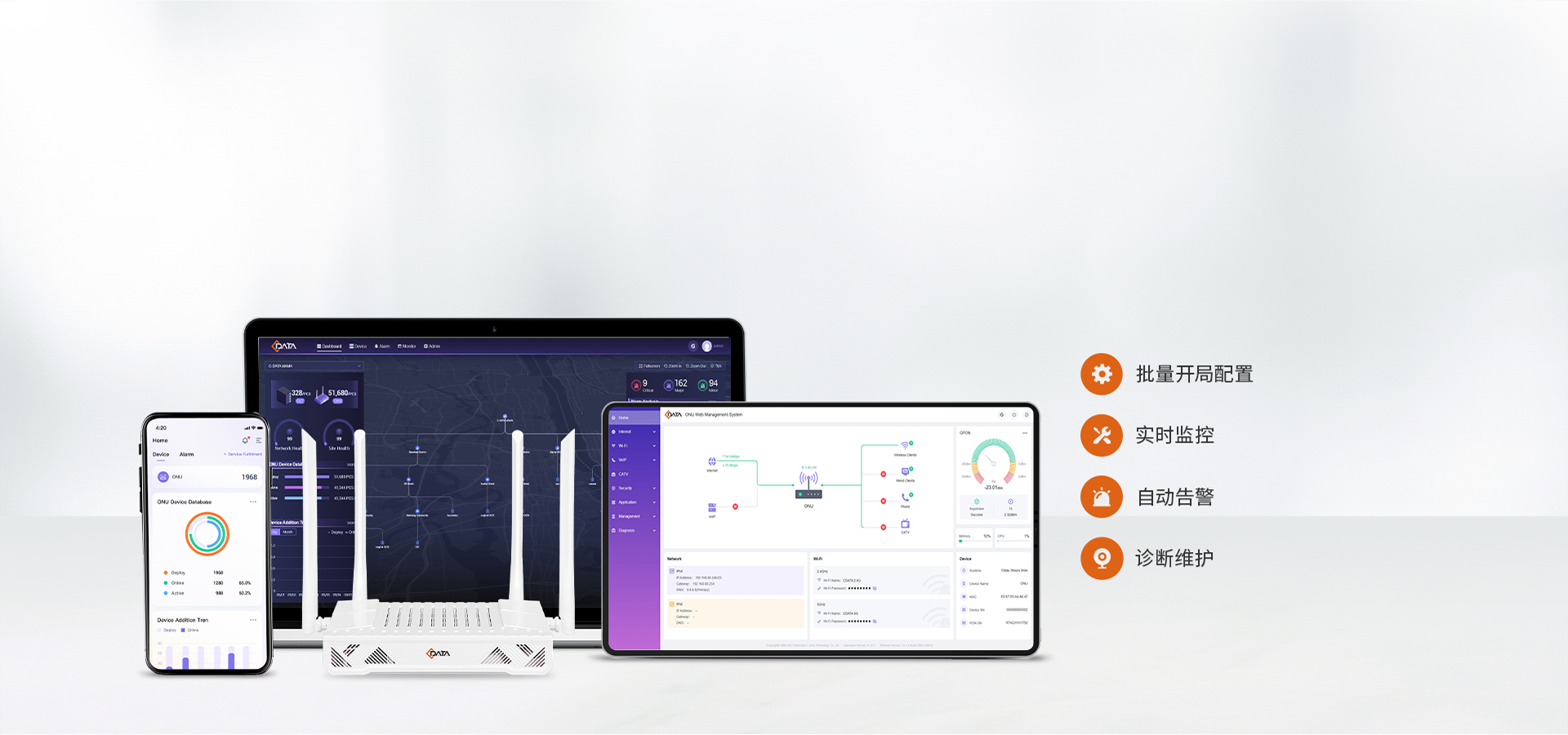

用户友好型管理
用户友好型管理


CMS和ONU WEB：为用户、企业和运营商提供了一个安全、高效和智能的网络运维平台，实现管理和运维的高效、快捷。

移动CMS APP：一键操作，提升安装和故障排除效率。

兼容第三方OLTs：即插即用，确保轻松访问和最佳连接。


智能家居
智能家居

规格



ModelFD614GS1-R550
PON PortGPON: FSAN G.984.2 standard, Class B+
EPON: 1000BASE-PX20+symmetric
GPON: 2.488Gbps/1.244Gbps downstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm Receiver: 1490nm
Receiving sensitivity: GPON: -28dBm EPON: -27dBm
Saturated power: GPON: -8dBm EPON: -3dBm
Transmitting power: GPON: 0.5～5dBm EPON: 0～4dBm

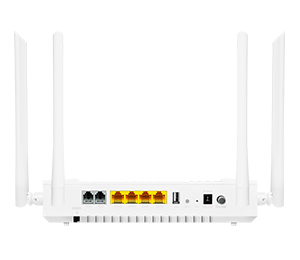

Interface1*xPON + 4*GE RJ45 + 1*RJ11 POTS
4*External 5dBi antennas
Dual-Band Wi-Fi6 (AX1500)
User Port (LAN)RJ-45 connector
4* 10/100/1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
WIFIIEEE802.11b/g/n(2.4G)
IEEE802.11a/n/ac(5G)
2.4G: 40Mhz bandwidth maximum rate 300Mbps
5G: 80Mhz bandwidth maximum rate 1201Mbps
Total wireless rate is 1500Mbps
2.4G EIRP: 24dBm / 5G EIRP: 22dBm
Dimensions170*120*41mm
WeightAbout 300g



查看更多
收回

相关产品



Item
FD514GS1-R550
FD514GS1-R550		FD614GS1-R550
FD614GS1-R550
Specifications
1*xPON + 4*GE RJ45
4*External 5dBi antennas
Dual-Band Wi-Fi6 (AX1500)		1*xPON + 4*GE RJ45 + 1*RJ11 POTS
4*External 5dBi antennas
Dual-Band Wi-Fi6 (AX1500)
GPON/EPON PortGPONFSAN G.984.2 standard, Class B+FSAN G.984.2 standard
EPON1000BASE-PX20+ symmetric1000BASE-PX20+ symmetric
GPON2.488Gbps/1.244Gbpsdownstream/upstream2.488Gbps/1.244Gbps downstream/upstream
EPON1.25Gbps downstream/upstream1.25Gbps downstream/upstream
WavelengthTransmit: 1310nm Receiver: 1490nmTransmit: 1310nm Receiver: 1490nm
Receiving sensitivityGPON: -28dBm EPON: -27dBmGPON: -28dBm EPON: -27dBm
Saturated powerGPON: -8dBm EPON: -3dBmGPON: -8dBm EPON: -3dBm
Transmitting powerGPON: 0.5～5dBm EPON: 0～4dBmGPON: 0.5～5dBm EPON: 0～4dBm
User Port(LAN)
RJ-45 connectorRJ-45 connector

4* 10/100/1000Mbps adaptive Ethernet port4* 10/100/1000Mbps adaptive Ethernet port

Full/half duplexFull/half duplex

Auto MDI/MDI-XAuto MDI/MDI-X
WIFI performance parameters
IEEE802.11b/g/n(2.4G) / IEEE802.11a/n/ac/ax(5G)IEEE802.11b/g/n(2.4G) /IEEE802.11a/n/ac/ax(5G)

2.4G: 40Mhz bandwidth maximum rate 300Mbps
5G: 80Mhz bandwidth maximum rate 1201Mbps
Total wireless rate is 1500Mbps		2.4G: 40Mhz bandwidth maximum rate 300Mbps
5G: 80Mhz bandwidth maximum rate 1201Mbps
Total wireless rate is 1500Mbps

2.4G EIRP: 24dBm / 5 G EIRP:22dBm2.4G EIRP: 24dBm / 5 G EIRP:22dBm
Indicators
PWR / PON / LOS / LAN1-4 / INT / WIFIPWR / PON / LOS / LAN1-4 / INT / TEL / WIFI
Power
External 12VDC/1A power supply adapterExternal 12VDC/1.5A power supply adapter

Power consumption: <12WPower consumption: <18W
Dimension and WeightItem Dimension170*120*41mm170*120*41mm
Item weightAbout 228gAbout 300g
Environmental SpecificationsOperating temperature0 to 40ºC0 to 40ºC
Operating humidity10% to 90%(Non-condensing)10% to 90%(Non-condensing)





订购信息


No.

Product Model

Specifications

Accessories

1

FD514GS1-R550

1*xPON + 4*GE RJ45

4*External 5dBi antennas

Dual-Band Wi-Fi6 (AX1500)

External 12VDC/2A power supply adapter

2

FD514GS3-R850

1*xPON + 4*GE RJ45

4*External 5dBi antennas

Dual-Band Wi-Fi6 (AX3000)

External 12VDC/2A power supply adapter

3

FD614GS1-R550

1*xPON + 4*GE RJ45 + 1*RJ11 POTS

4*External 5dBi antennas

Dual-Band Wi-Fi6 (AX1500)

External 12VDC/2A power supply adapter

4

FD614GS3-R850

1*xPON + 4*GE RJ45 + 1*RJ11 POTS

4*External 5dBi antennas

Dual-Band Wi-Fi6 (AX3000)

External 12VDC/2A power supply adapter

5

FD714GS1-R550

1*xPON+4*GE RJ45+1*RF CATV(F-Type)

4*External 5dBi antennas

2.4GHz + 5GHz Dual-Band Wi-Fi6 (AX1500)

External 12VDC/2A power supply adapter

6

FD714GS3-R850

1*xPON+4*GE RJ45+1*RF CATV(F-Type)

4*External 5dBi antennas

2.4GHz + 5GHz Dual-Band Wi-Fi6 (AX3000)

External 12VDC/2A power supply adapter
