FD814GS1-R850

Name: FD814GS1-R850
Brand: 深圳市西迪特科技股份有限公司

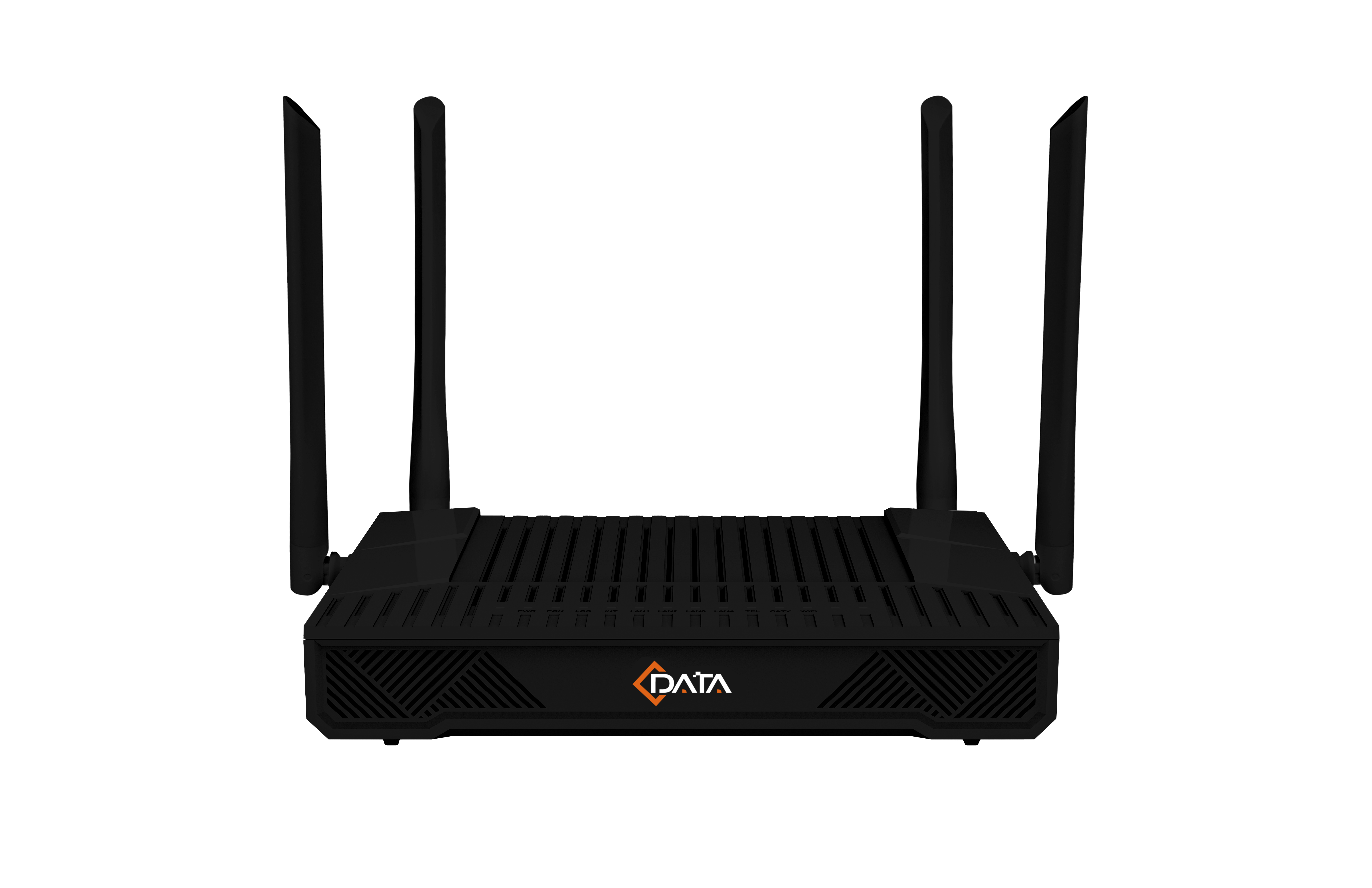

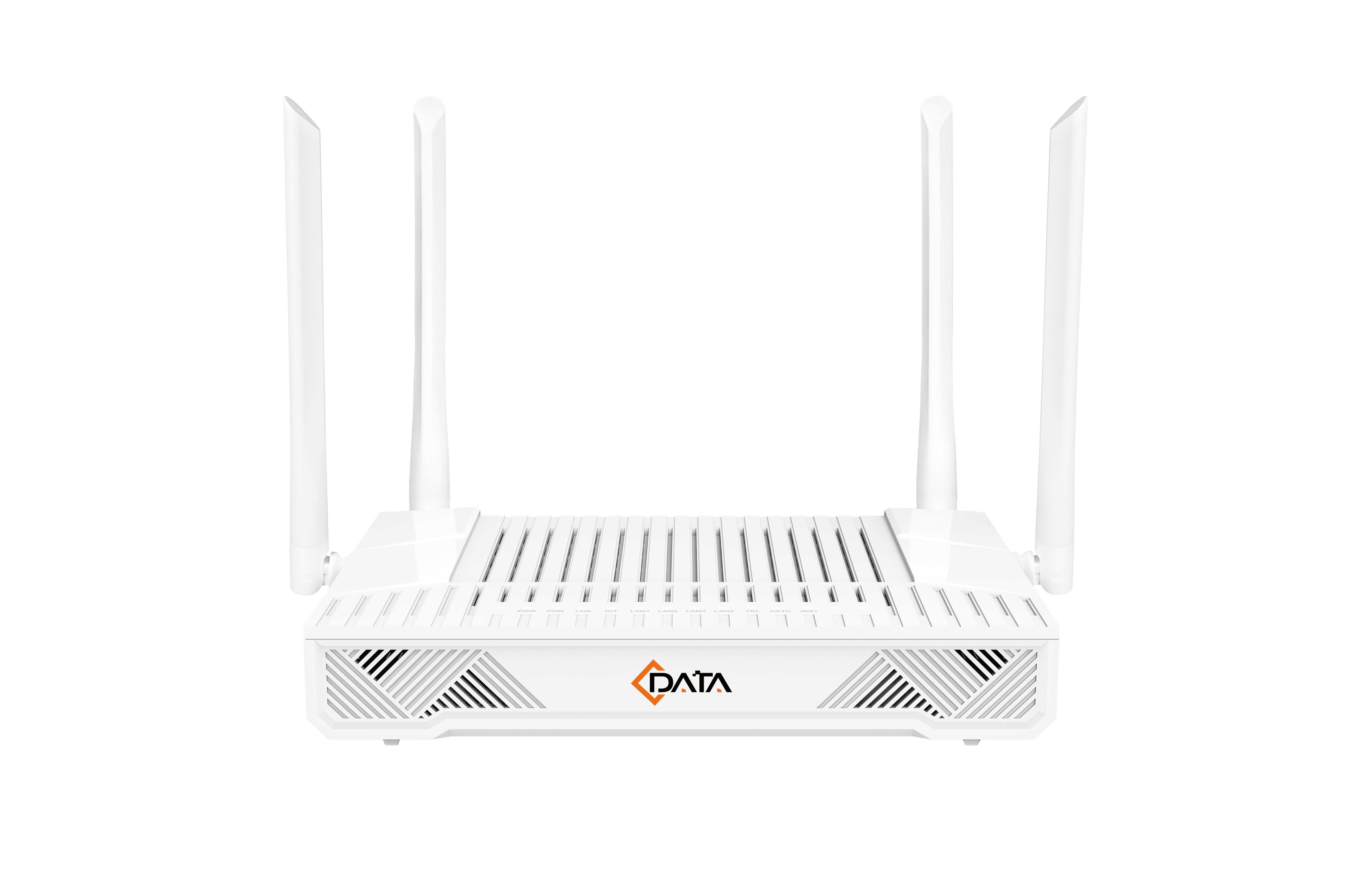

FD814GS1-R850是一款室内型光纤宽带接入终端。该设备提供1个GPON/EPON自适应光口，支持XPON模式。

可与我司FD16/17系列GPON OLT或FD12/13系列EPON OLT配套使用，也可与主流厂商（华为/中兴/烽火）的GPON或

EPON OLT对接，为用户提供基于GPON和EPON技术的Internet、WIFI、VOIP和CATV等业务。

Technical Specifications

Hardware

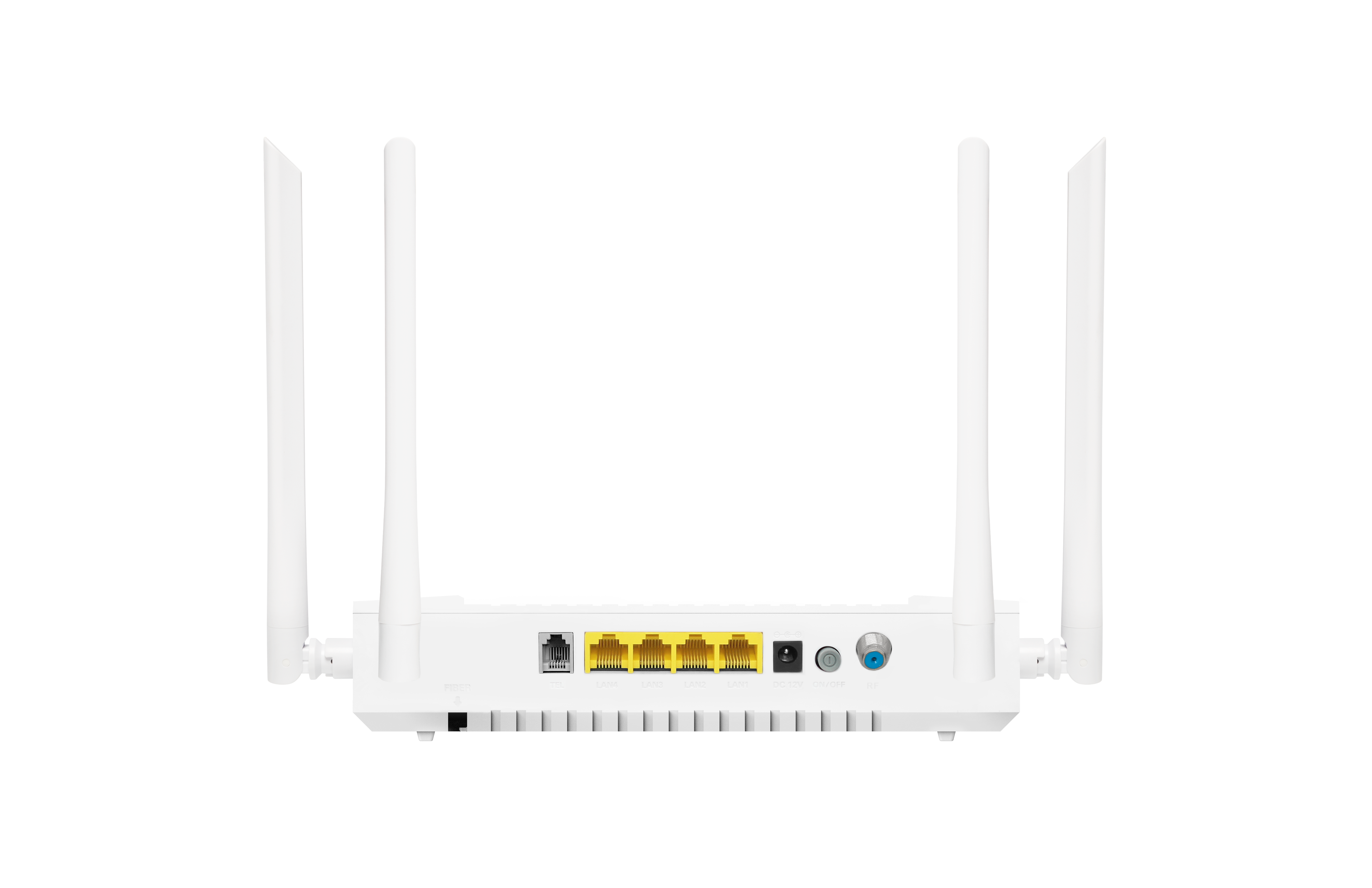

User Port (LAN)		RJ-45 connector
		4 *10/100/1000Mbps adaptive Ethernet port
		Full/half duplex
		Auto MDI/MDI-X
Indicators		PWR / PON / LOS / LAN1-4 / INT / TEL / CATV / WIFI
PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm Receiver: 1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dB
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting powe	EPON:0～4dBm GPON：0.5～5dBm

CATV (Input/Output port)

Wavelength: 1550nm

Input optical power: -18dBm～0dBm(with AGC)

RF frequency: 47MHz~1000MHz

RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC)

RF output return loss: >12dB(with AGC)

RF impedance: 75Ω

User Port (POTS)

RJ-11 connector

1*account

SIP protocol

TDMF

G711U/G711A/G729/G722 encoding and decoding

WIFI

IEEE802.11b/g/n/ax(2.4G) / IEEE802.11a/n/ac/ax(5G)

2.4G: 40Mhz bandwidth maximum rate 300Mbps

5G：80Mhz bandwidth maximum rate 1201Mbps

Total wireless rate is 1500Mbps

2.4G EIRP:24dBm / 5 G EIRP:22dBm
