Data ONU

  • 软件定制
    软件定制
  • Dual-band Wi-Fi
    Dual-band Wi-Fi
  • Support EPON/GPON
    Support EPON/GPON
  • IPv4/IPv6
    IPv4/IPv6

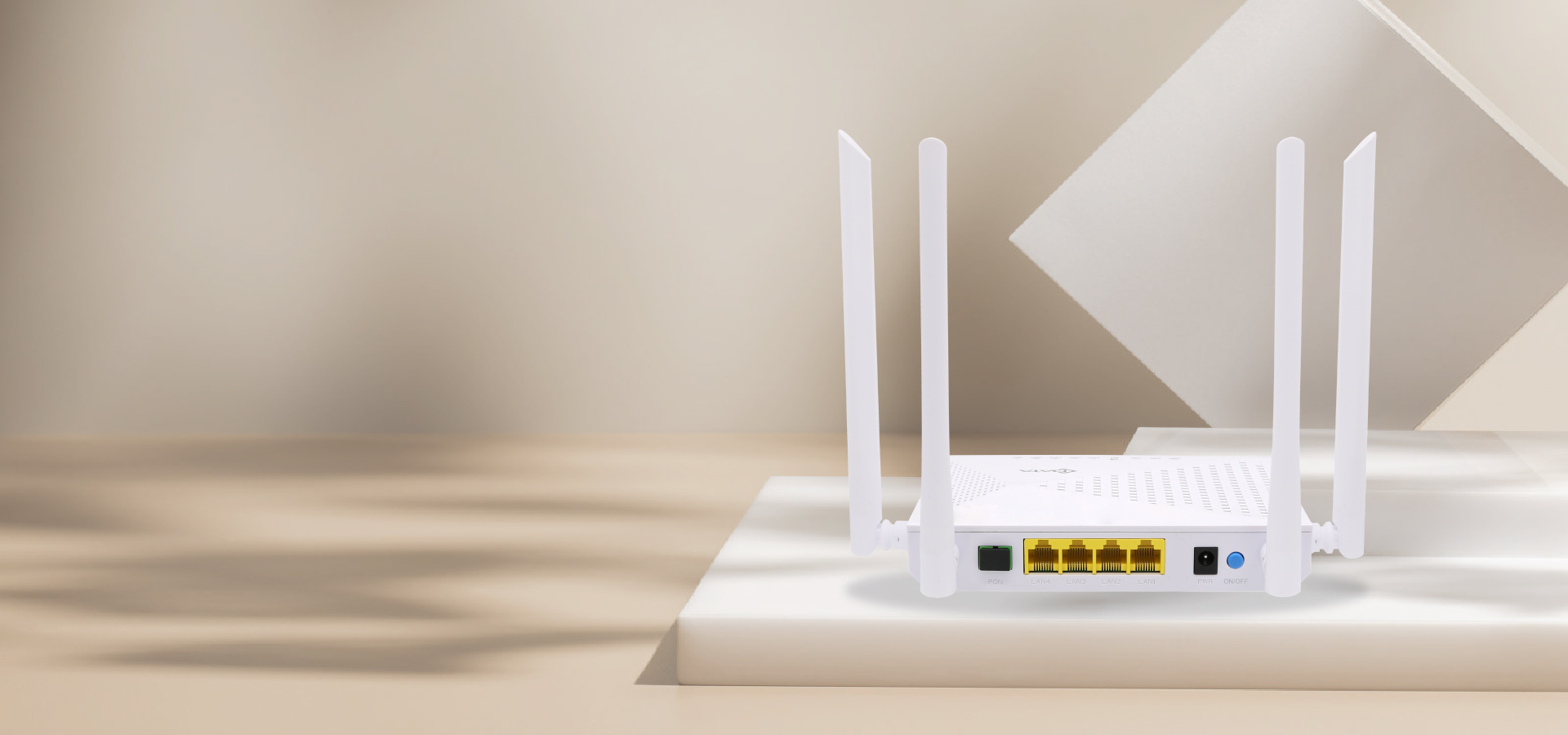

4个千兆端口，更大带宽，承载更大数据流
4个千兆端口，更大带宽，承载更大数据流

相较百兆端口，千兆端口的整体性能提高10倍。

远程开会，视频通话，下载大文件？so easy！

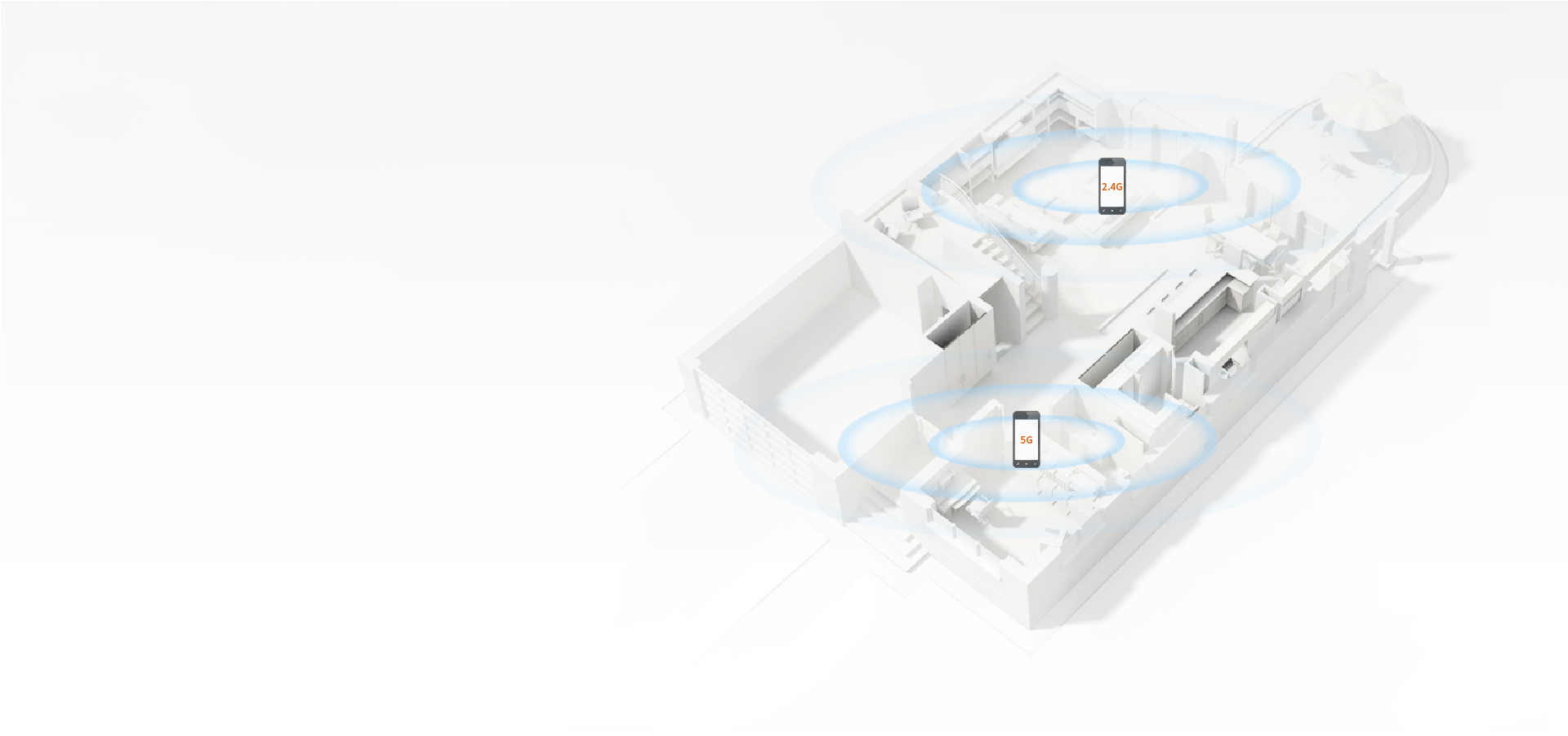

2.4G+5G双频WiFi，高速上网
2.4G+5G双频WiFi，高速上网

双频wifi，2.4G轻松穿墙，5G高速上网，强强联合，打造极致上网体验

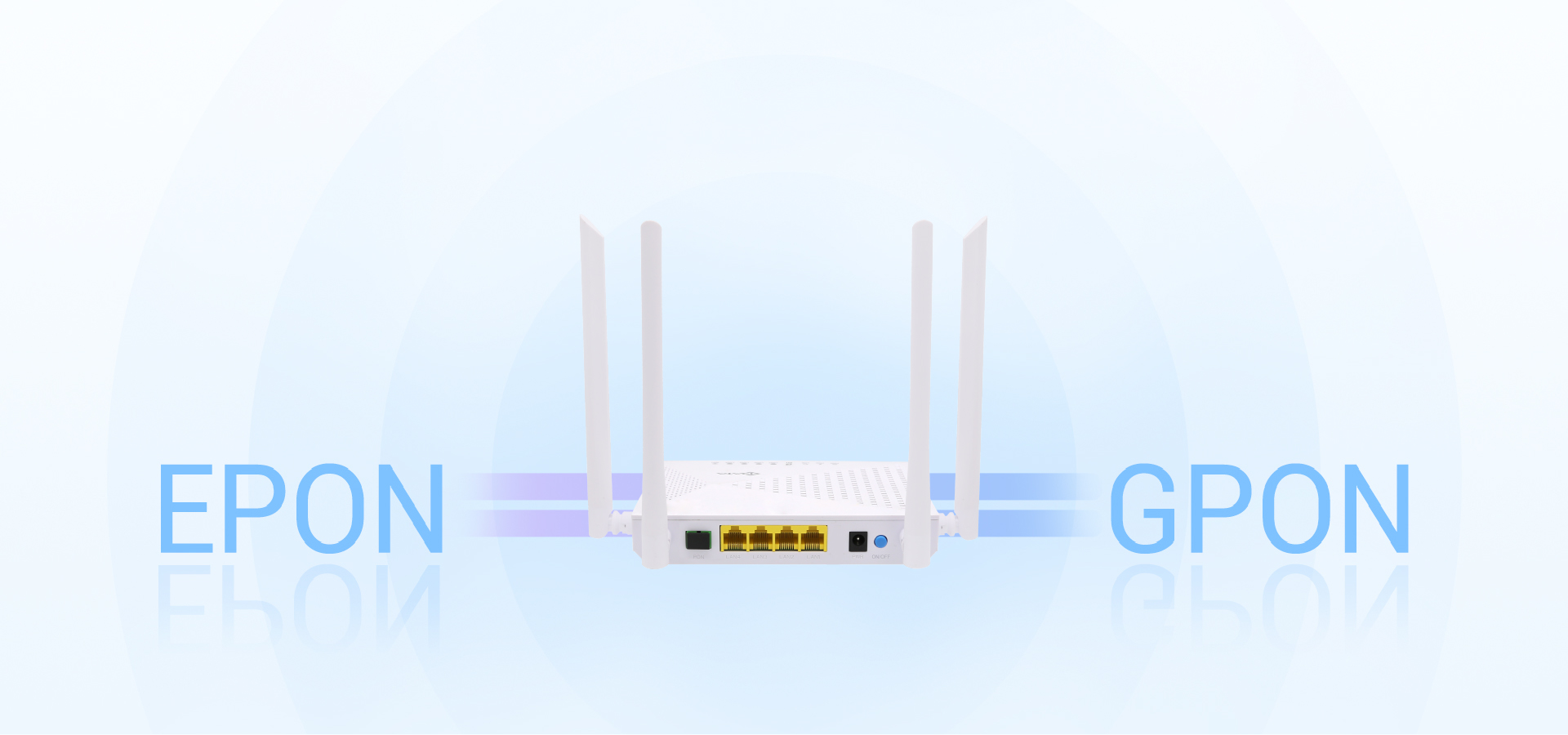

EPON/GPON双模式访问，降低运营商投资成本
EPON/GPON双模式访问，降低运营商投资成本
兼容各类OLT，组网灵活
兼容各类OLT，组网灵活

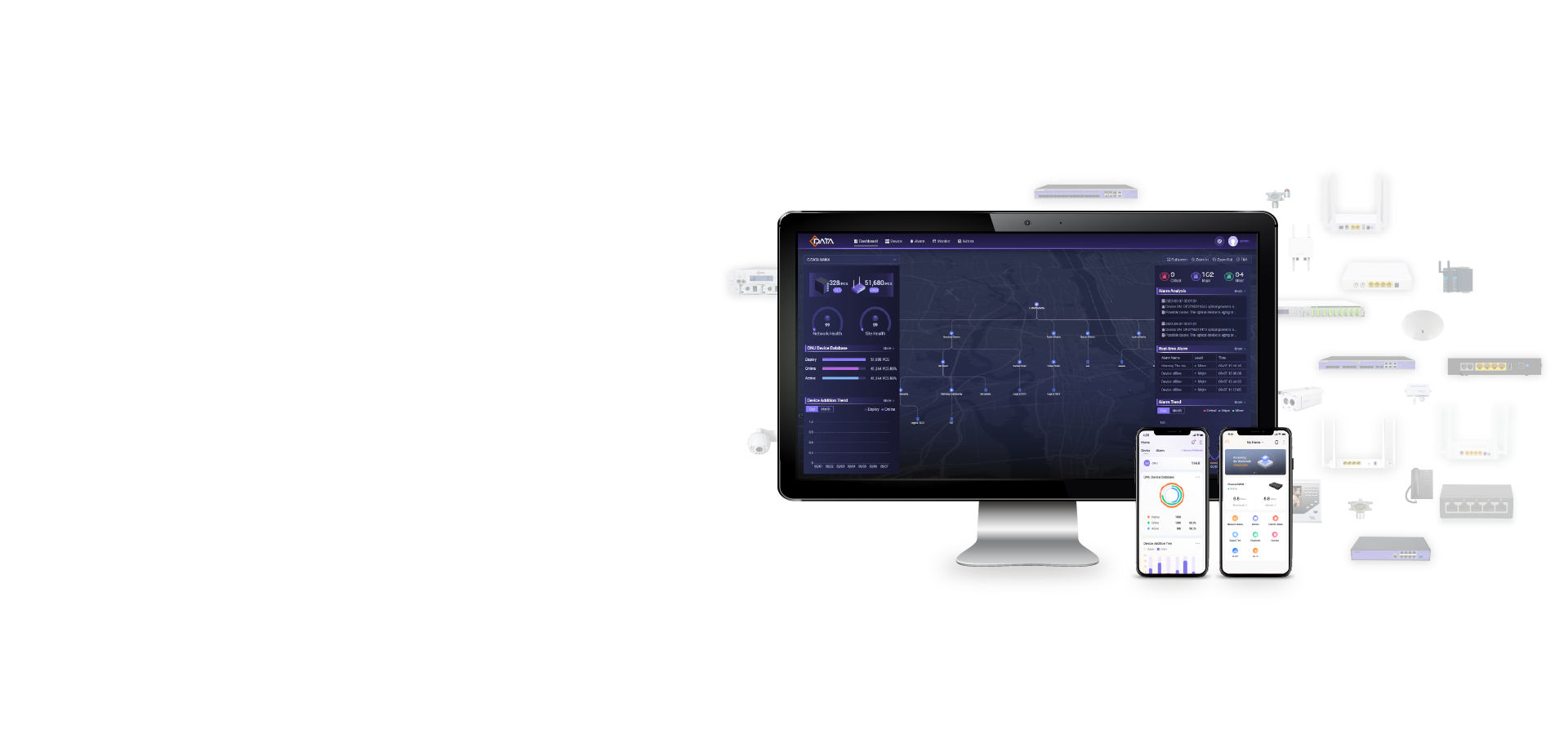

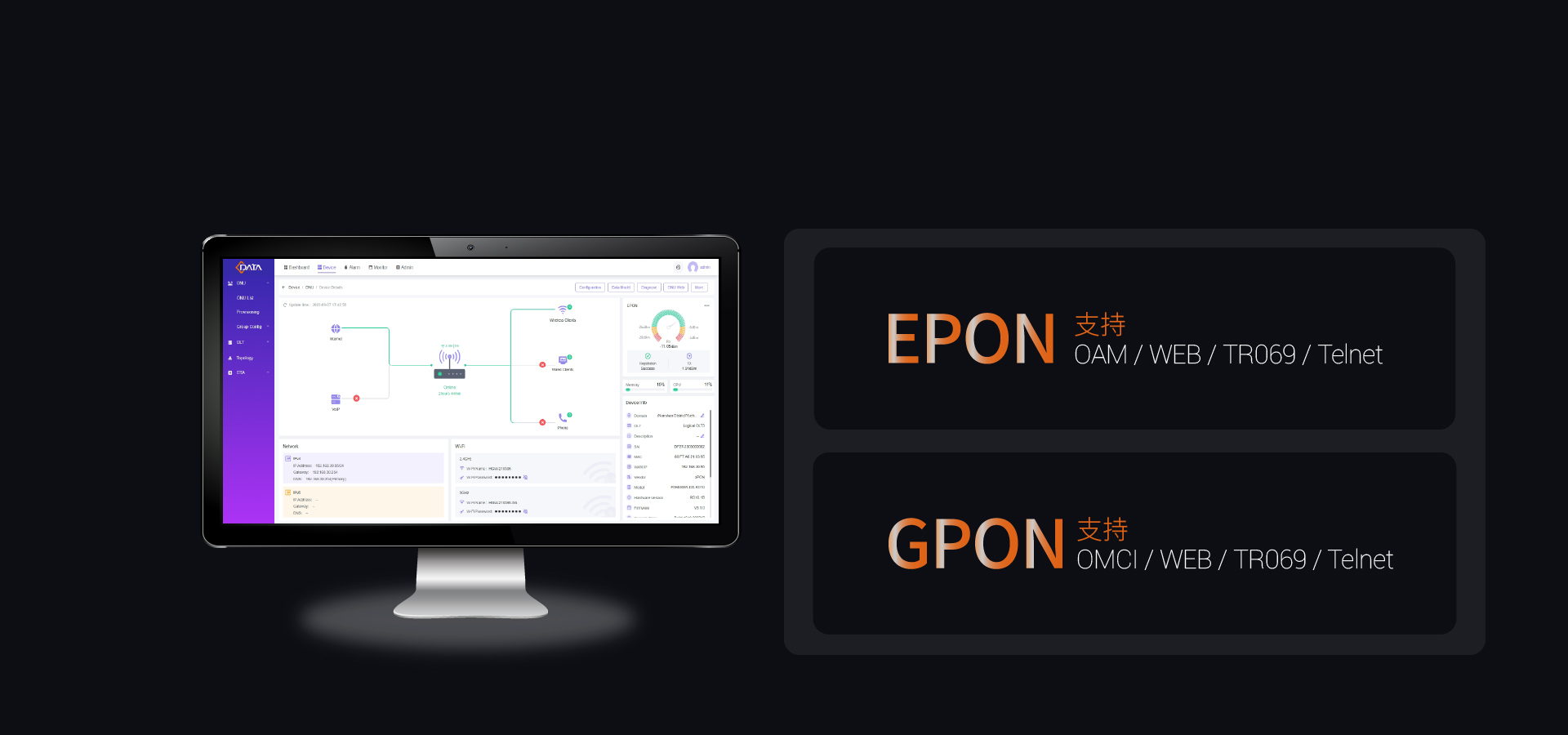

网络管理？So easy！
网络管理？So easy！

规格

型号

FD514GD-R460
用户端口Single mode single fiber
GPON: FSAN G.984.2 standard, Class B+
EPON: 1000BASE-PX20+symmetric
GPON: 2.488Gbps/1.244Gbps downstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm Receiver: 1490nm
Receiving sensitivity: GPON: -28dBm EPON: -27dBm
Saturated power: GPON: -8dBm EPON: -3dBm
Transmitting power: GPON: 0.5～5dBm EPON: 0～4dBm
Interface1*xPON + 4*GE RJ45 + Dual-Band Wi-Fi
用户端口 (LAN)RJ-45 connector
4*10/100/1000 Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
WIFI

IEEE802.11b/g/n(2.4G)

IEEE802.11a/n/ac(5G)

Max rate: 300M(2.4G)

Max rate: 867Mbps(5G)

MAX TX power 2.4G:17dBm

MAX TX power 5G:17dBm

尺寸214*139.5*32mm
重量0.228kg




查看更多
收回

相关产品

Item

FTTH ONU


FD512XW-R470

FTTH ONU


FD504XW-R460

Specifications
1*xPON + 1*FE RJ45 + 1*GE RJ45 + Wi-Fi3*FE RJ45 + 1*GE RJ45 + Wi-Fi
GPON/EPON Port
Single mode single fiberSingle mode single fiber
GPONFSAN G.984.2 standard,Class B+FSAN G.984.2 standard
EPON1000BASE-PX20+ symmetric1000BASE-PX20+ symmetric
GPON2.488Gbps/1.244Gbpsdownstream/upstream2.488Gbps/1.244Gbps downstream/upstream
EPON1.25Gbps downstream/upstream1.25Gbps downstream/upstream
WavelengthTransmit: 1310nm Receiver: 1490nmTransmit: 1310nm Receiver: 1490nm
Receiving sensitivityGPON：-28dBm EPON：-27dBmGPON：-28dBm EPON：-27dBm
Saturated powerGPON：-8dBm EPON：-3dBmGPON：-8dBm EPON：-3dBm
Transmitting powerGPON：0.5～5dBm EPON:0～4dBmGPON：0.5～5dBm EPON:0～4dBm
User Port(LAN)
RJ-45 connectorRJ-45 connector

1*10/100 and 1*10/100/1000Mbps adaptive Ethernet port1*10/100/1000 and 3*10/100 Mbps adaptive Ethernet port

Full/half duplexFull/half duplex

Auto MDI/MDI-XAuto MDI/MDI-X
WIFI performance parameters
IEEE802.11b/g/n(2.4G)IEEE802.11b/g/n(2.4G)

Max rate: 300M(2.4G)Max rate: 300M(2.4G)

MAX TX power 2.4G:17dBmMAX TX power 2.4G:17dBm
Indicators
PWR / PON / LOS / GE / FE / WIFI / INT / OPTPWR / PON / LOS / LAN / WPS / WIFI
Power
External 12VDC/0.5A power supply adapterExternal 12VDC/0.6A power supply adapter

Power consumption: <4.2WPower consumption: <6W
Dimension and WeightItem Dimension125*107.5*30.5mm160*139.5mm*28.5mm
Item weight0.2kg0.228kg
Environmental SpecificationsOperating temperature0 to 40ºC0 to 40ºC
Storage temperature-40 to 85ºC-40 to 85ºC
Operating humidity10% to 90%(Non-condensing)10% to 90%(Non-condensing)



订购信息

NO.产品型号规格配件
1FD511G-F6601*xPON + 1*GE RJ45AC-DC 电源适配器： 直流 12V/0.5A
2FD512XW-R4701*xPON + 1*FE RJ45 + 1*GE RJ45 + Wi-FiAC-DC 电源适配器： 直流 12V/0.5A
3FD512GD-R5501*xPON + 2*GE RJ45 + Dual-Band Wi-FiAC-DC 电源适配器： 直流 12V/0.5A
4FD504XW-R4603*FE RJ45 + 1*GE RJ45 + Wi-FiAC-DC 电源适配器： 直流 12V/0.5A
5FD514GD-R4601*xPON + 4*GE RJ45 + Dual-Band Wi-FiAC-DC 电源适配器： 直流 12V/0.5A
