FD1604E-C1

Name: FD1604E-C1
Brand: 深圳市西迪特科技股份有限公司

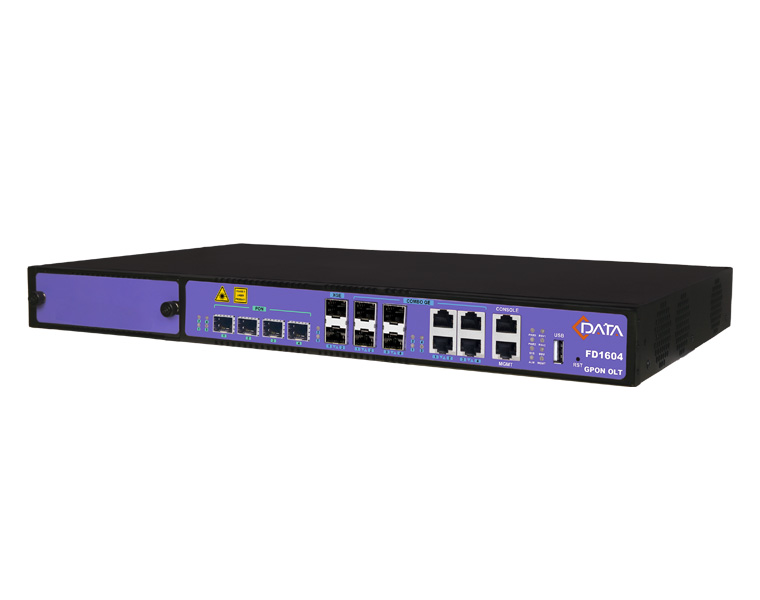

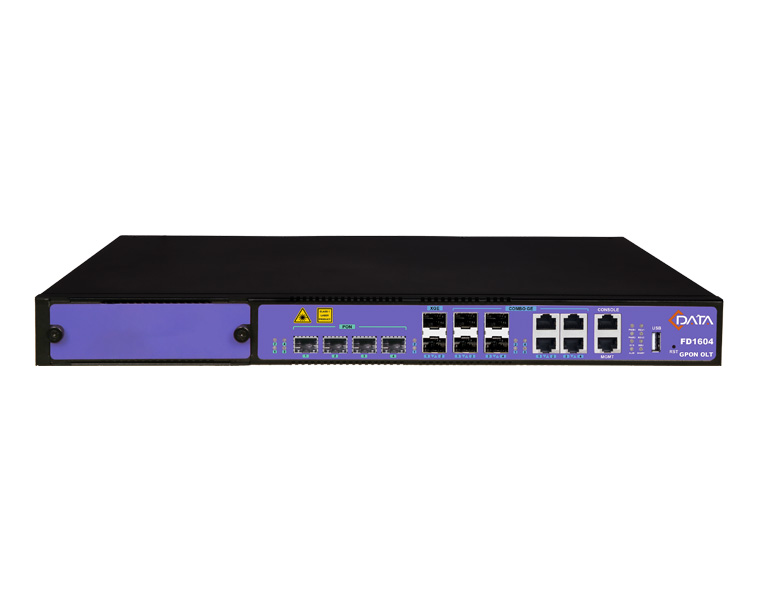

GPON OLT FD1604S/FD1604E-C1 完全符合 ITU-T G.984.x/G.988 的相关标准，为 1U 机架式设备，

配有 1 个 USB 接口、4 个上行 GE 端口、4 个上行 SFP 端口和 2 个 10GE 上行端口。

FD1604S-C1 有 4 个固定 GPON 端口，FD1604E-C1 有 4 个固定 GPON 端口和 1 个 4GPON 端口服务卡（可选）。

每个 GPON 端口支持 1:128 的分光比。GPON 系统最多支持 512/ 1024 个终端连接。

FD1604E-C1 支持可插拔业务卡，使用方便灵活，易于部署，便于网络业务的后续扩展。

此外，该产品从接入网和企业网的角度出发，满足了提升网络性能、提高可靠性、降低功耗的要求，

适用于三网合一的广播电视网、FTTP（光纤到户）、视频监控网、企业局域网、物联网等网络应用，具有极高的性价比。

Functional Feature

Meet ITU-T G.984/G.988 standard and standards of Chinese Communication Industry
Support OMCI Protocol
1U height 8PON OLT product in compact design of Pizza-Box
Fan speed adjust automatically
1+1 Pluggable power module
Complete PON protection switching function
Layer 2 Switching Function
OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, LACP, rate limit, port isolate, queue technology, flow control technology, ACL and so on, which provides technical guarantee for the development of multi-service integrated.
QoS Guarantee
GPON Products maintains fully-improved DBA with excellent QoS service capabilities. DBA meets different QoS requirements from different service flow in latency, jitter, packet loss rate.
Easy-to-Use Management System
Support management method of CLI, WEB, SNMP, TELNET, SSH and meet OMCI standard, through OMCI channel protocol service management can be realized, including ONT function parameter set, T-CONT service lines and amount, QoS parameters, configuration information request, performance statistics, auto-reporting of running events in system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.

Mechanics

Dimensions

440mm(L)*293mm(W)*44mm(H)

Weight

3.6Kg (FD1604S-C1)

3.0Kg (FD1604E-C1)

Hardware
Uplink Port	COMBO port	4* 10/ 100/ 1000M auto-negotiation Ethernet ports
		4* SFP interfaces
	10-Gigabit	2* SFP+ interfaces
PON Port	Quantity	4 (FD1604S-C1) 4/8 (FD1604E-C1)
	Physical Interface	SFP slot
	Interface Type	GPON: ITU-TG.984.2 Class B+/Class C+/Class C++
	Max Splitting Ratio	GPON: 1:128
Management Port		1* 100/ 1000BASE-Tx out-band Ethernet port 1* CONSOLE local management port
USB Port		1* USB interface (It’s used to backup configuration, upgrade program and record log information)
PON Port Attribute	Transmission Distance	20KM
	Port Rate	GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
	Wavelength	Forwarding: 1490nm Receiving: 1310nm
	Interface Type	SC/ UPC
	Fiber type	9/ 125μm SMF (Single Mode Fiber)
	Light Transmission Power	Class B+: +1.5 ~+5dBm	Class C+: +3 ~ +7dBm	ClassC++: +4.5 ~ +10dBm
	Receiving Sensitivity	Class B+: -28dBm	Class C+: -30dBm	Class C++: -31dBm
	Saturation Power	Class B+: -8dBm	Class C+: -12dBm	Class C++: -10dBm
Network Management Method		Support CLI, SNMP, TELNET, SSH, WEB
Business Capabilities		Support device log, device upgrade, device management, condition monitoring, configuration management, and user management. Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on. PON function configuration management: Like OLT authentication, DBA template, service template, line template and so on. Layer 3 function: support static routing, dhcp-relay and vlanif configuration.
Backplane Bandwidth		63G (FD1604S-C1) 78G (FD1604E-C1)

Power supply
AC	100V ~ 240V, 47 ~ 63Hz
DC	-40V ~ -72V
BBU (Backup Battery Unit)	DC: 11V～14V. Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backup power supply.
Maximum Power	34.6W (FD1604S-C1) 49W (FD1604E-C1)
