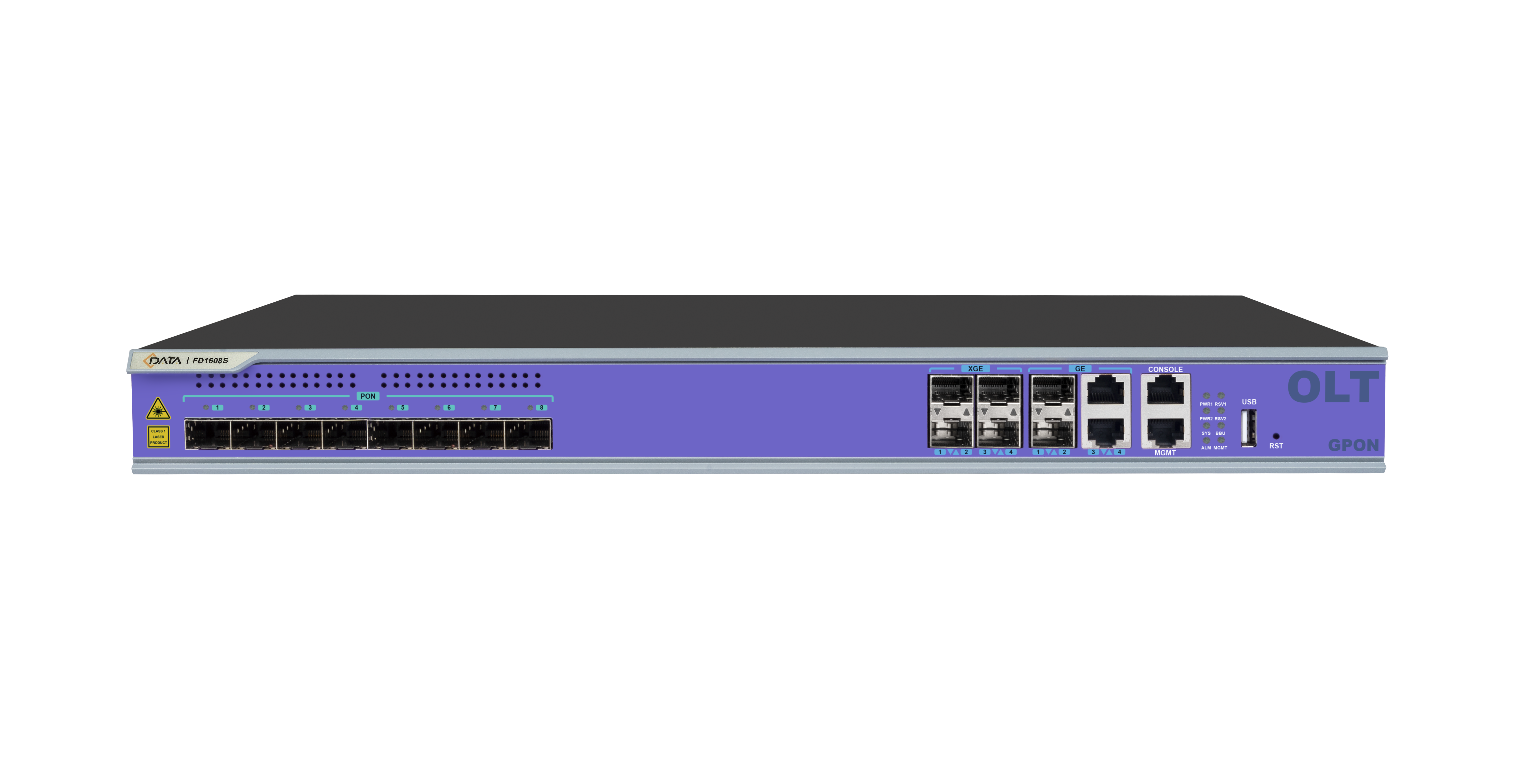

FD1608S-B2

管理机架

1U 19 英寸标准机箱

尺寸

440mm(L)*276mm(W)*44mm(H)

重量

4.50Kg

上行链路端口

2 10/100/1000M auto-negotiation Ethernet ports

2 SFP interfaces

10-Gigabit

4 SFP+ interfaces

PON端口

数量

8

Physical interface

SFP slot

Interface type

GPON:  ITU-TG.984.2 Class B+/Class C+

Max splitting ratio

GPON:  1:128

Management Port

1  100/1000BASE-Tx out-band Ethernet port

1  CONSOLE local management port

USB端口

1 USB interface (It’s used to backup configuration, upgrade program, and record log information)

PON Port attribute

Transmission distance

20KM

Port rate

GPON:   Downstream: 2.5Gbps      Upstream: 1.25Gbps

Wavelength

Forwarding: 1490nm       Receiving: 1310nm

Interface type

SC/UPC

Fiber type

9/125μm SMF (Single Mode Fiber)

Light transmission power

Class B+  +1.5 ~ +5dBm

Class C+  +3 ~ +7dBm

Receiving sensitivity

Class B+ :  -28dBm

Class C+ :  -30dBm

Saturation power

Class B+  -8dBm

Class C+  -12dBm

Backplane Bandwidth

118G

AC

100V ~ 240V，47~63Hz

DC

-40V ~ -72V

工作环境

-15 ~ 50℃

储存温度

-40 ~ 85℃

湿度

5 ~ 90% (无冷凝)
