ONU Stick

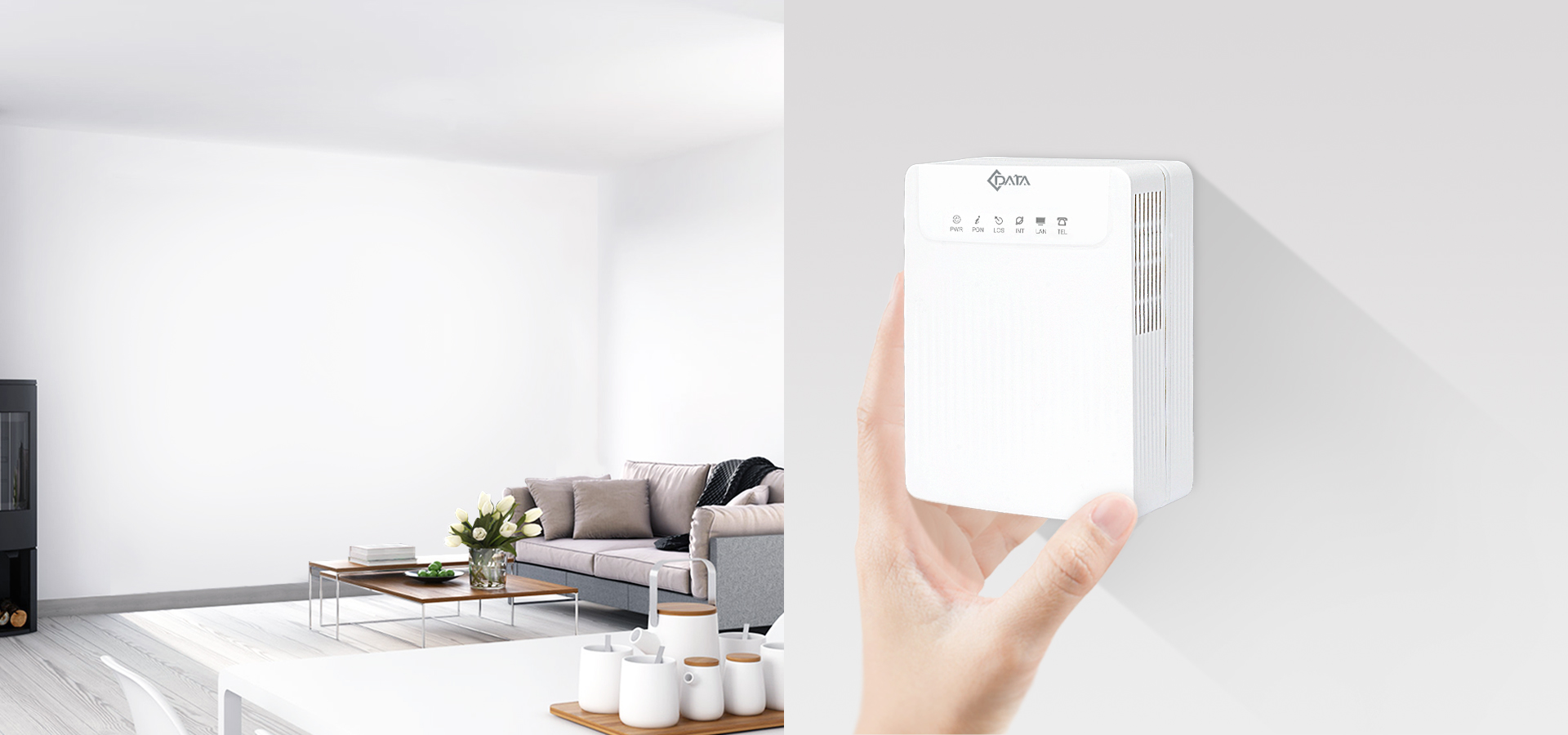

C-Data Panel-Type xPON ONU
C-Data Panel-Type xPON ONU

轻松升级您的网络

  • Support EPON/GPON
    Support EPON/GPON
  • Multiple Interface Optional
    Multiple Interface Optional

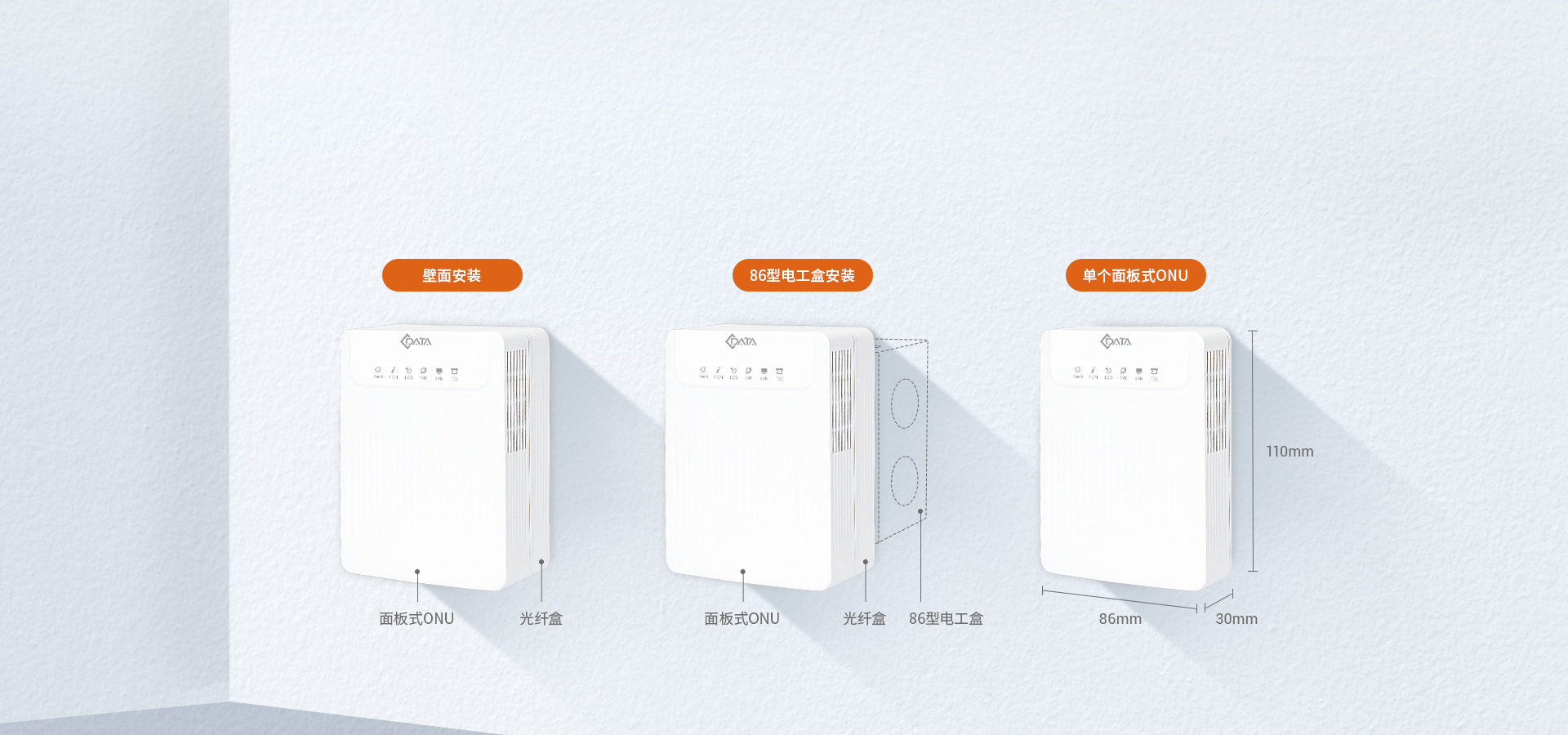

  • Flexible Installation
    Flexible Installation
  • 即插即用_copy20250524
    即插即用_copy20250524
Plug and Play, Flexible Installation
Plug and Play, Flexible Installation

xPON SFP ONU是一款支持双向数据传输的单模光模块，符合ITU-T G.984.x和IEEE802.3ah协议，使用1310nm上行波长和1490下行波长，通过SC/UPC连接器实现长达20km的链路。其具备ONU设备的PON MAC功能，因此可作为xPON ONU来使用。

Ensures a Seamless Experience for Voice, Video, and Data Service
Ensures a Seamless Experience for Voice, Video, and Data Service

在FTTH或FTTB场景中，xPON SFP ONU通过热插拔到以太网交换机中使设备可直接接入PON网络，帮助终端设备实现高速网络连接。也可用于摄像头、AP、DSLAM的改造，从而实现网络升级和扩容。

Standards-Compliant and Reliable
Standards-Compliant and Reliable

SFP ONU支持网桥功能和OMCI管理，支持EPON和GPON双模式，提供1.25Gbps的上行速率和最高2.5Gbps的下行速率，具备出色的部署灵活性

Achieve Seamless Full Coverage for FTTH / FTTx
Achieve Seamless Full Coverage for FTTH / FTTx

采用模块化设计，支持即插即用，便于替换维护，能够轻松与现有设备集成，无缝实现网络升级。

High-Performance Forwarding Capabilities
High-Performance Forwarding Capabilities

无论是家庭网络还是企业办公，SFP ONU都能提供稳定高速的网络接入，以其便捷的安装和维护特点满足各种部署环境的要求，充分满足用户对网络升级的需求。

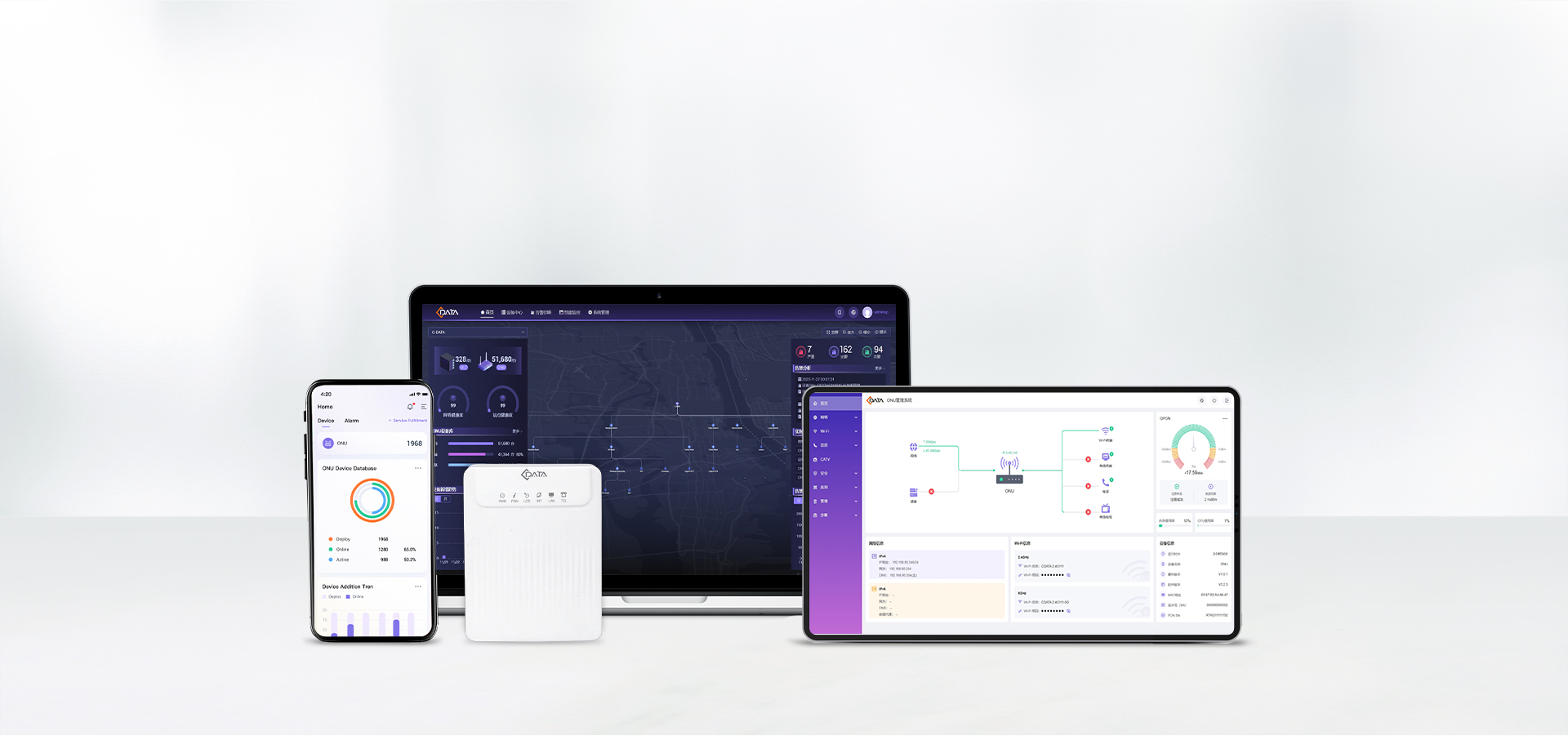

The Integrated Management System
The Integrated Management System

无论是家庭网络还是企业办公，SFP ONU都能提供稳定高速的网络接入，以其便捷的安装和维护特点满足各种部署环境的要求，充分满足用户对网络升级的需求。

应用场景
应用场景

无论是家庭网络还是企业办公，SFP ONU都能提供稳定高速的网络接入，以其便捷的安装和维护特点满足各种部署环境的要求，充分满足用户对网络升级的需求。

RELATED PRODUCTS

Item


FD511G-FA10

Specifications
1*xPON + 1*GE RJ45
GPON/EPON Port
SC/APC single mode single fiber
GPONFSAN G.984.x standard,Class B+
EPON1000BASE-PX20+ symmetric
GPON2.488Gbps/1.244Gbps downstream/upstream
EPON1.25Gbps downstream/upstream
WavelengthTransmit: 1310nm Receiver: 1490nm
Receiving sensitivityGPON：-28dBm EPON：-27dBm
Saturated powerGPON：-8dBm EPON：-3dBm
Transmitting powerGPON：0.5～5dBm EPON:0～4dBm
User Port(LAN)
1*10/100/1000 Mbps Auto-negotiation RJ45 ports

Full Duplex / Half-Duplex

RJ45, Auto-MDI/MDI-X

Transmission Distance 100 Meters
Indicators
PWR / PON / LOS / LAN / INT
Power
External 12V/0.5A DC power supply adapter

Power consumption:<3W
Dimension and WeightItem Dimension110*86*30mm（Without Coiled fiber box）110*86*45mm（With Coiled fiber box）
Item weightabout 125g
Environmental SpecificationsOperating temperature0 to 40ºC
Operating humidity10% to 90%(Non-condensing)



Specification

ModelFD511G-FA10
User PortSC/APC single mode single fiber
GPON: FSAN G.984.2 standard,Class B+
EPON: 1000BASE-PX20+ symmetric
GPON: 2.488Gbps/1.244Gbpsdownstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm; Receiver: 1490nm
Receiving sensitivity: GPON: -28dBm EPON: -27dBm
Saturated power: GPON: -8dBm EPON: -3dBm
Transmitting power: GPON: 0.5～5dBm EPON: 0～4dBm
Interface1*xPON + 1*GE RJ45
User Port (LAN)1*10/100/1000 M Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex
RJ45, Auto-MDI/MDI-X
Transmission Distance 100 Meter
WIFI

/

Dimensions110*86*45mm
Weightabout 125g

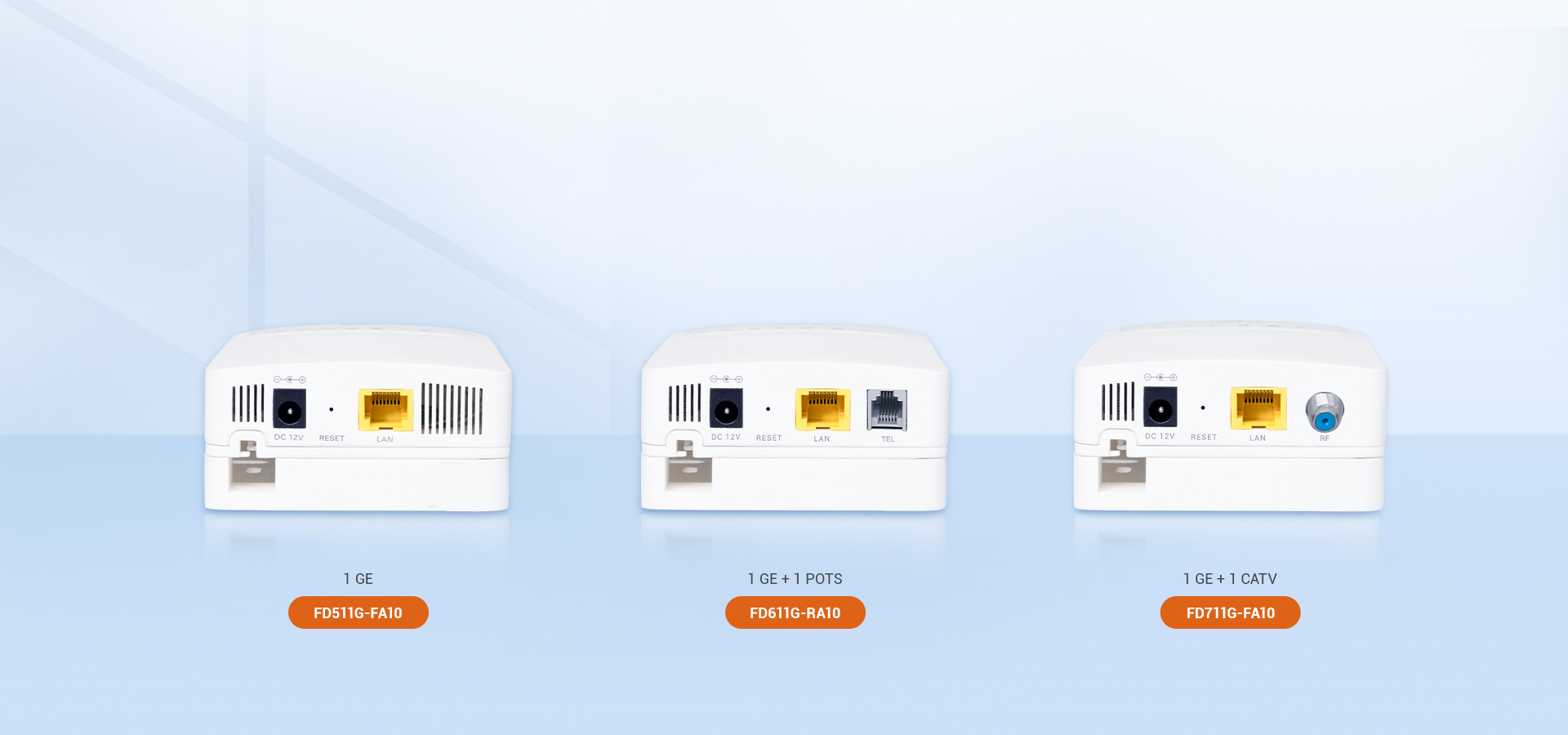

ORDERING INFORMATION

NO.Product ModelSpecificationsAccessories
1FD511G-FA101*xPON + 1*GE RJ45AC-DC Power Adapter: DC 12V/0.5A
2FD711G-FA101*xPON + 1*GE RJ45 + 1*RF CATVAC-DC Power Adapter: DC 12V/0.5A
3FD611G-RA101*xPON + 1*GE RJ45 + 1*POTSAC-DC Power Adapter: DC 12V/0.5A
