FD510D-FP10
AP

Name: FD510D-FP10
Brand: 深圳市西迪特科技股份有限公司

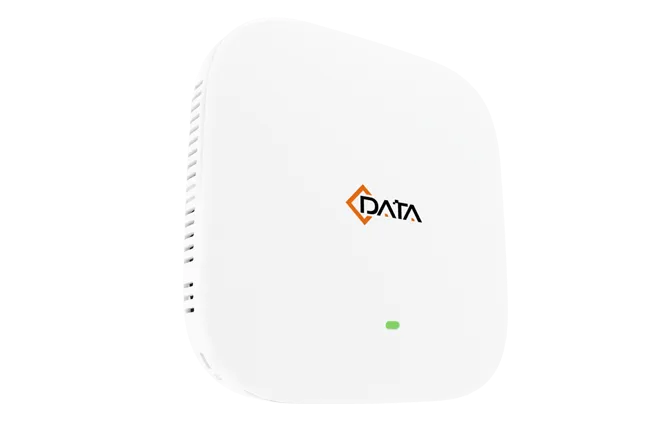

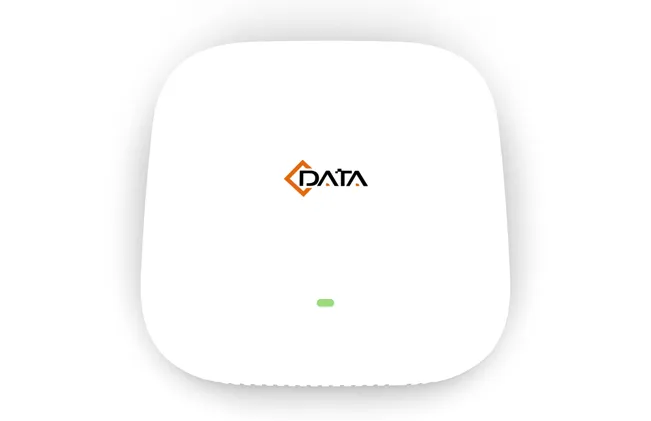

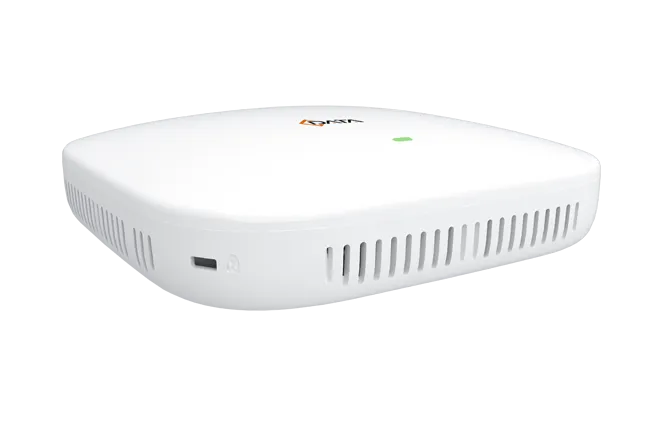

FD510D-FP10 is acompact and lightweight AC1200 indoor ceiling mounted xPON ONU launched by C-Data. It provides one SC type optical composite cable PON port and offers DC and standard POF power supply methods, making net working flexible. Can be widely used in indoor scenarios such as restaurants, hotel lobbies, warehouses, and small businesses, providing high-quality wireless coverage.

 下载  询价

Functional Feature

In compliant with IEEE802.3ah and ITU -T G.984 standard
Support ONU auto-discovery/ Link detection/remote upgrade of software
Support SN and LOID+Password multiple registration methods
Support port VLAN configuration
Support port-based rate limitation and bandwidth control
Support port flow-control
Support MAC address learning
Support MAC address learning account limit
Support VLAN transparent/tag/translate/trunk
Support broadcasting storm resistance function
Support igmp transparent/snooping/ proxy mode
Support Dynamic Bandwidth Allocation (DBA)
Support AES encryption and decryption
Support power-off alarm function, easy for link problem detection
Support Firewall
Support MAC address/URL filter
Support Remote WEB/Telnet access control

LED Definitions

Indicator

Description

PON/ LOS

ONT Register

Green constantly on: Success to register to OLT;

Green flashing: In process of registering to OLT;

Red constantly on: LOS;

Product Specification

Mechanics
Dimensions	155mm(L)155mm(W)40mm(H)
Weight	About 228g

Hardware

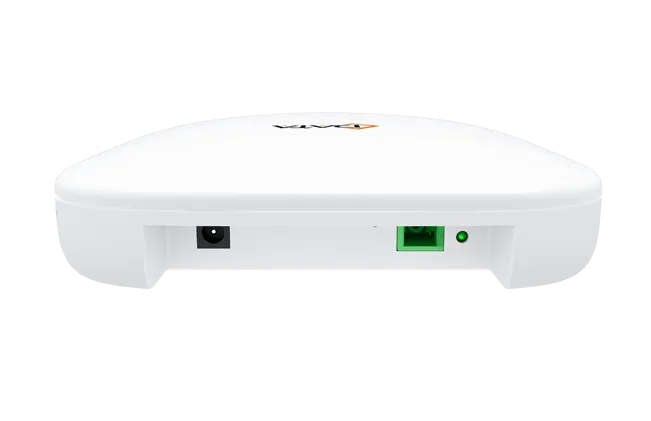

Interface		1 * Pin type Debugging port base (default configuration) or 1*GE RJ-45 connector(optional)
		1 * SC type optoelectronic composite cable interface
		1DC power port, 1Reset, 4*Internal Wi-Fi Antennas
Indicators		PON/ LOS
PON Port	PON Mode	EPON：1000BASE-PX20+ symmetric GPON：ITU-T G.984.2 standard,Class B+
	PON Rate	EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream
	Wavelength	Transmit: 1310nm	Receiver: 1490nm
	Receiving sensitivity	EPON：-27dBm GPON：-28dBm
	Saturated power	EPON：-3dBm GPON：-8dBm
	Transmitting power	EPON:0～4dBm GPON：0.5～5dBm

Wi-Fi

IEEE 802.11b/g/n(2.4GHz)

IEEE 802.11a/n/ac(5GHz)

Total wireless rate is 1200Mbps

2.4GHz: 40Mhz bandwidth maximum rate 300Mbps

5GHz: 80Mhz bandwidth maximum rate 867Mbps

2.4GHz EIRP: 23dBm / 5GHz EIRP: 22dBm

Power supply
POF IN (optical-electric composite cable power supply, Standard PoE protocol),
Input voltage	44-56V
External power supply adapter	12VDC/ 1A
Power consumption	≤6W

Environment
Working temperature	0 to 40ºC
Operating humidity	10% ~ 90% (Non-condensing)
